Product Description

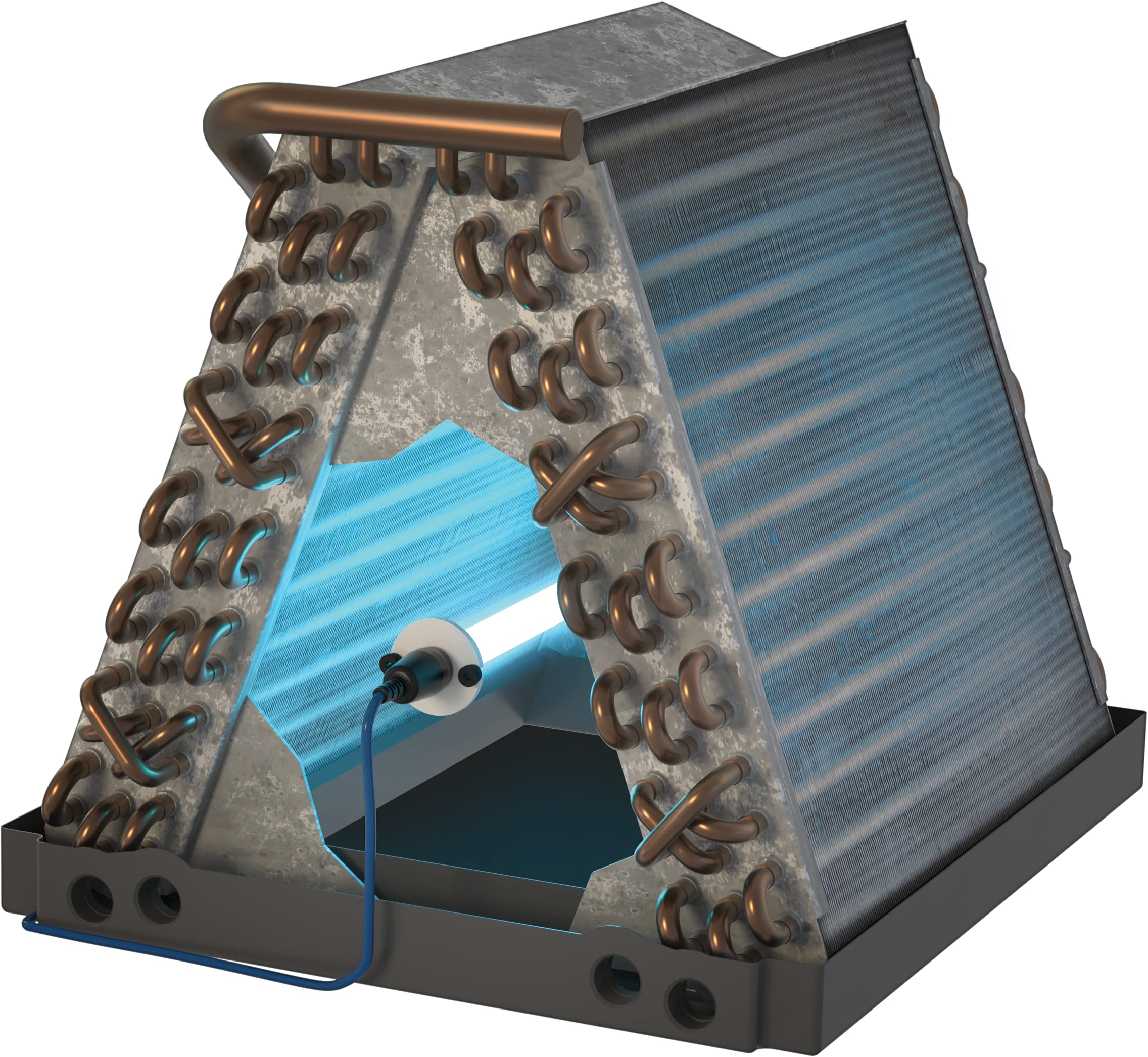

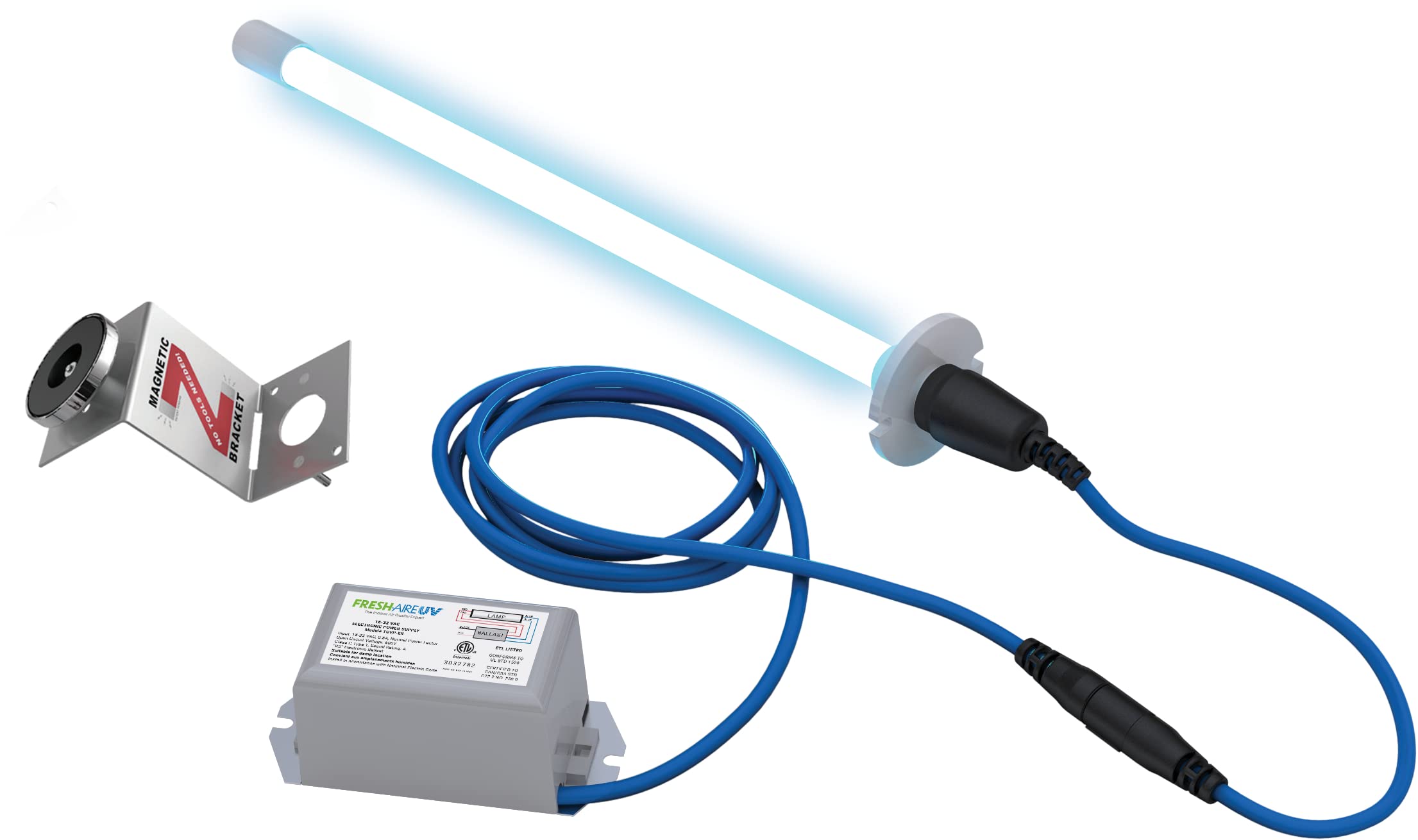

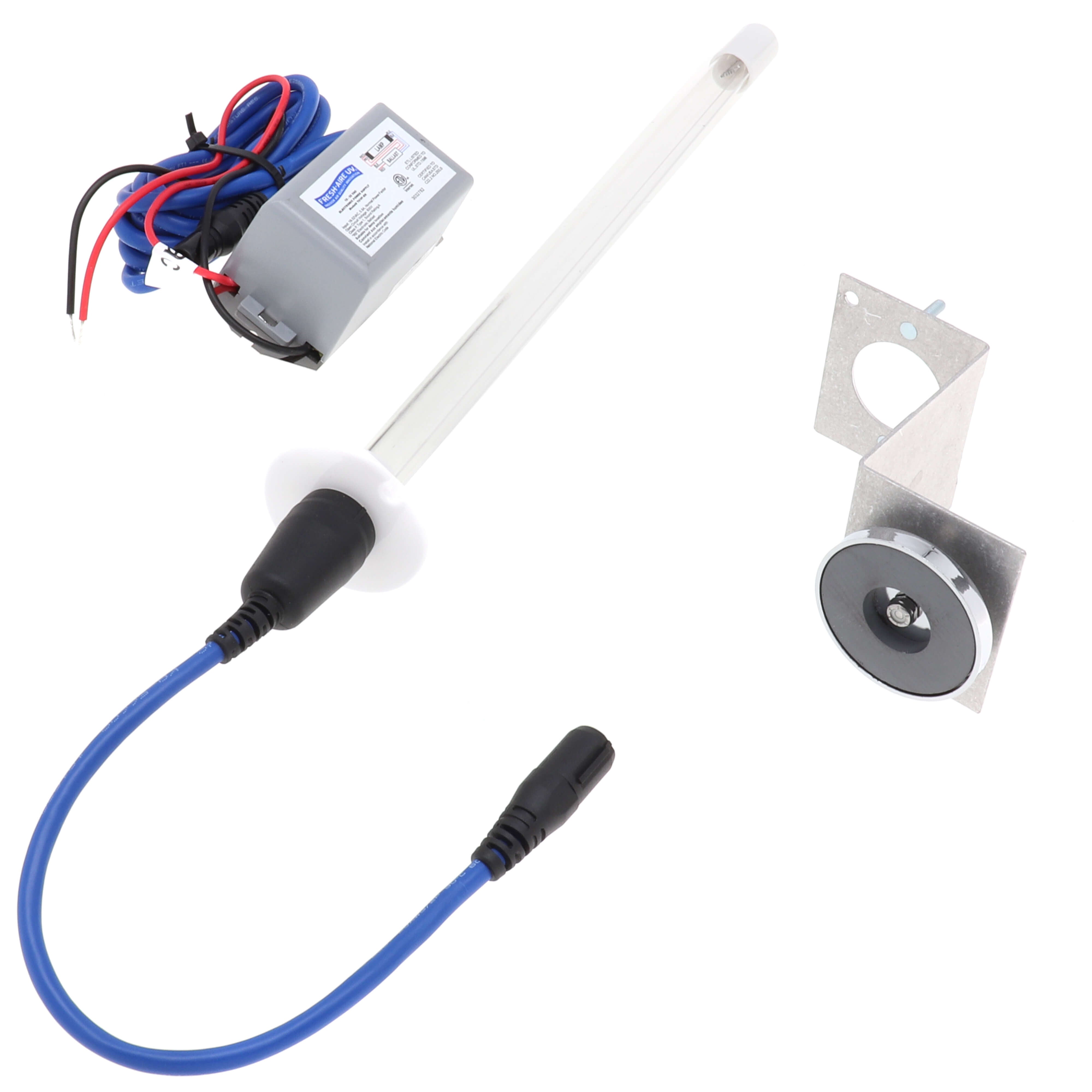

The FRESH-AIRE UV TUV-BTER Blue-Tube UV light kit is designed for residential HVAC systems. It sterilizes airborne microbes, including viruses, bacteria, and mold, improving indoor air quality. The system inhibits mold growth on coils and HVAC system interiors, saving on energy and maintenance costs. It features a patented design and a Z-Magnet for easy installation.
- 18-32 or 110-277 VAC power supply
- Z-Magnet for easy install
- Patented Design
Product Highlights
The Blue-Tube UV light kit improves air quality, sterilizes airborne microbes, and inhibits HVAC mold growth.
Product Information
Standard Information
-
Brand: FRESH-AIRE UV
-
Manufacturer Part Number: TUV-BTER
-
Country of Origin: USA
Technical Specifications
-
Product Type: LIGHT_BULB
-
Manufacturer: Fresh-Aire UV / Triatomic Environmental
-
Brand: Fresh-Aire UV
-
Product Group: BISS
-
Model / MPN: TUV-BTER
-
Number of Items: 1.0
-
Amperage Rating: 0.68 A
-
Item Name: UV Light Kit
-
Sub Brand: Blue-Tube UV
-
Voltage Rating: 18 - 32 VAC at 60 Hz
-
Applications: For residential HVAC systems
-
UV Lamp: 254 nm germicidal UV-C, quartz hot filament
-
Lamp Dimensions: 15"L x 0.74" Dia.
-

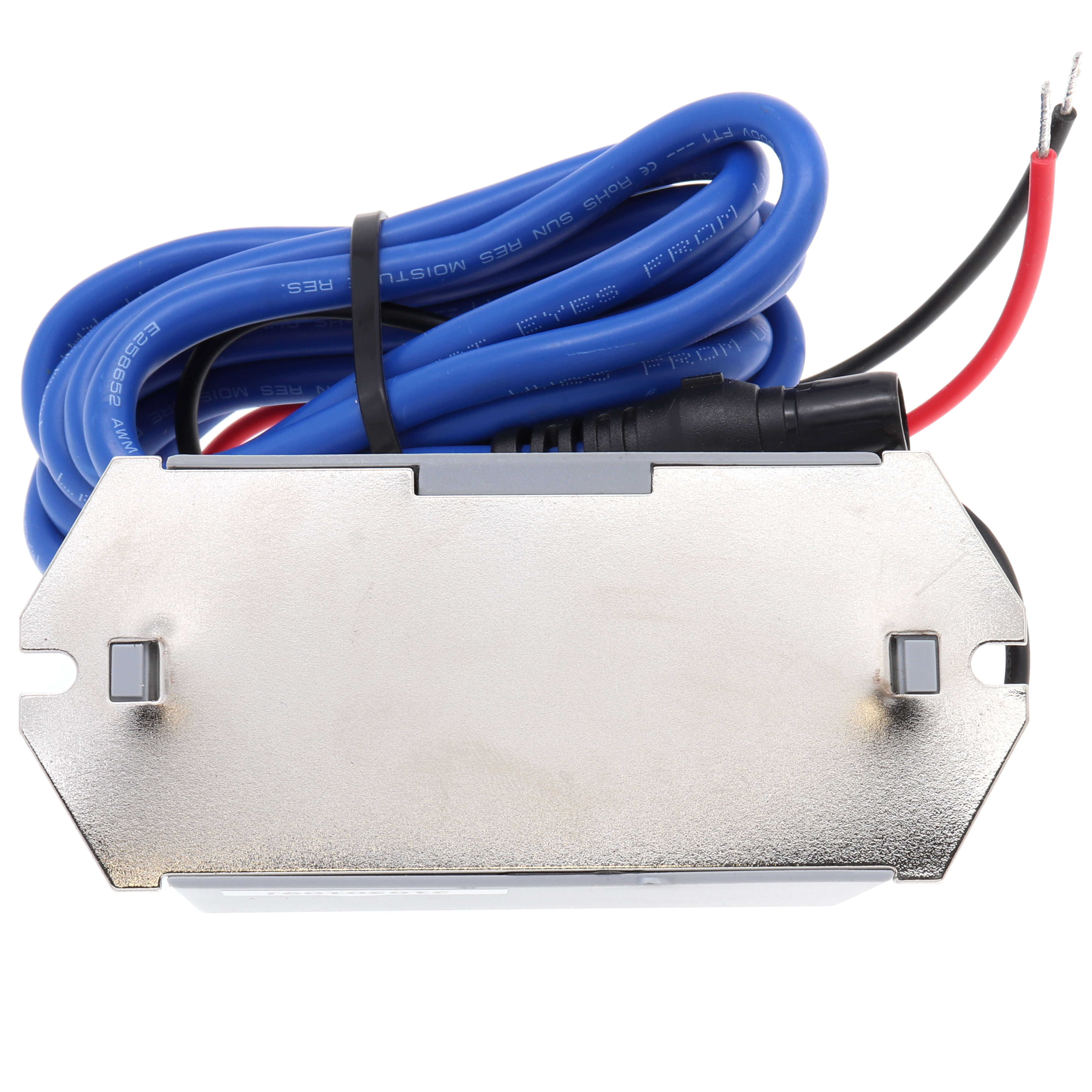

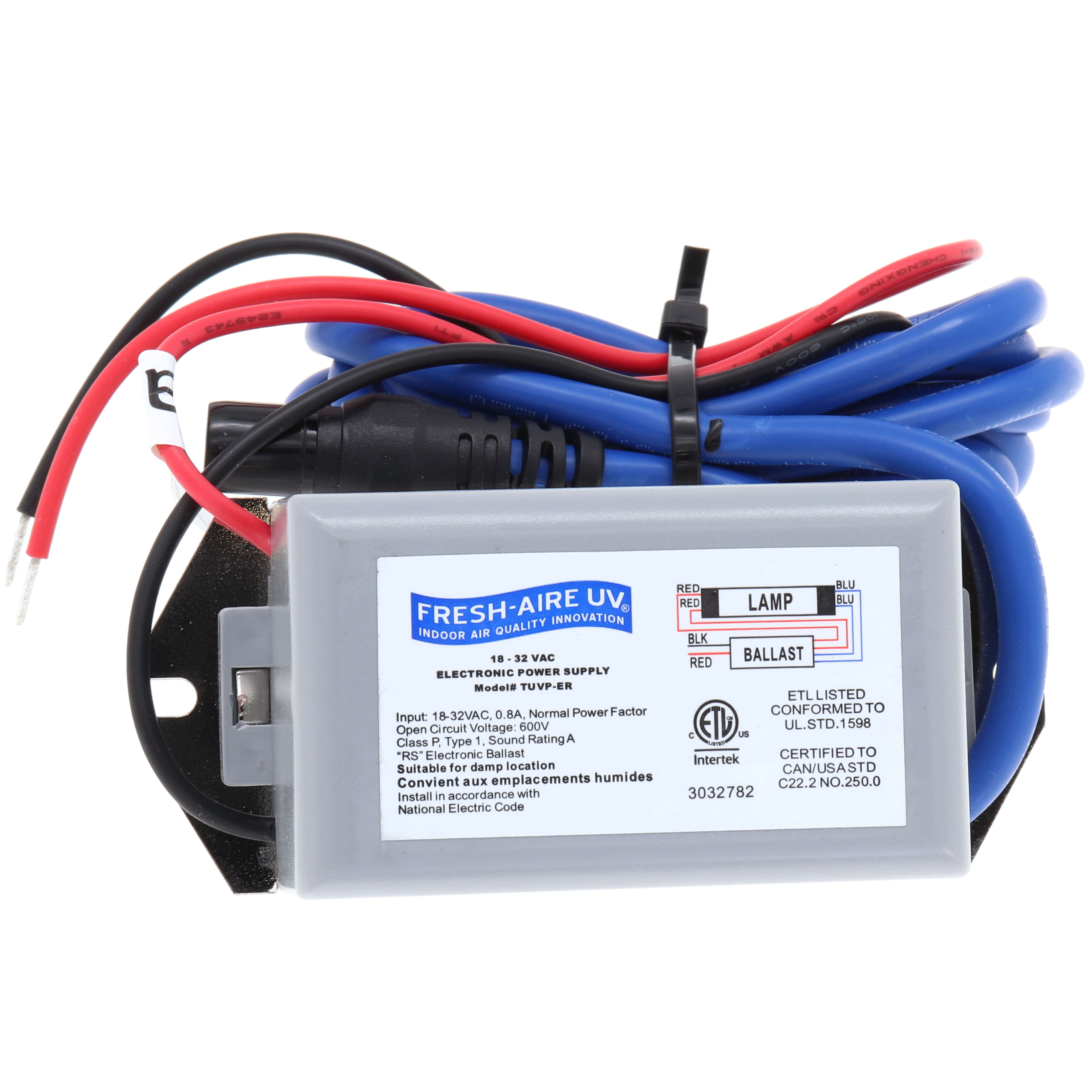

ER Power Supply Dimensions: 4.1"W x 1.7" H x 1.8"D
-
Electrical: 18-32 VAC, 60 Hz; 0.68 Amps, 16 VA
-
Light Type: UVC Light (Zero Ozone Emissions)
-
Special Feature: Lightweight, Long Lasting
-
Bulb Shape Size: T8
-
Bulb Base: G13
-
Specific Uses For Product: Airborne Disinfection, HVAC Coil Disinfection, Indoor Air Quality Improvement, Odor Control, Surface Disinfection, Whole House Air Purification
-
Light Color: Blue
-
Voltage: 24 Volts
-
Indoor Outdoor Usage: Indoor
-
Power Source: Corded Electric
-
Light Source Type: UV
-
Control Method: App
-
Light Source Operating Life: 1 Years
-
Efficiency: High
-
Controller Type: Push Button
-
Material Type: Quartz Glass
-
Specification Met: TUV
-
Domestic/Import: Domestic
-
Temperature Rating: 105 to 300 deg F
-
Compatible Brand: Fresh-Aire
-
Country of Origin: United States
-
Condition: New
