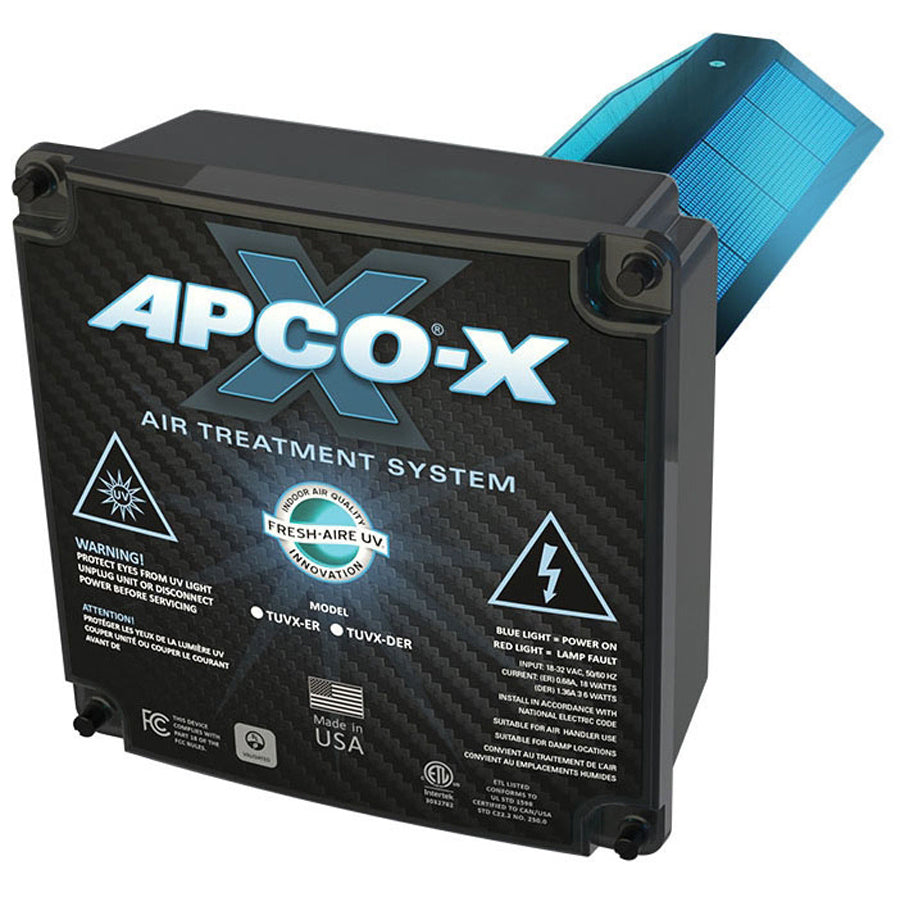

Fresh-aire Uv TUV-APCOX-ER3 In-duct Air Purifier 24V

Product Description

The FRESH-AIRE UV TUV-APCOX-ER3 is an in-duct air purifier designed for installation inside residential and light commercial HVAC ductwork. It combines an Advanced V-Twin EverCarbon Matrix carbon filter with antimicrobial nanotechnology to reduce airborne contaminants, odors, and volatile organic compounds as air circulates through the system. The unit operates on 18 to 32 volts AC at 60 Hz, making it compatible with standard 24-volt HVAC control circuits. A translucent polycarbonate housing and LED smart notification indicator allow for visual status monitoring without opening the duct. Licensed HVAC technicians are the primary installers for this type of whole-system IAQ device.

This unit is intended for installation inside supply or return air ducts in forced-air HVAC systems. The faceplate rotates to support 360-degree orientation, accommodating a wide range of duct configurations and access orientations encountered in both residential new construction and retrofit service work. It is sized for practical installation in standard rectangular ductwork and connects directly to the low-voltage control circuit of the air handler or furnace.

Key Features

• Advanced V-Twin EverCarbon Matrix carbon filter for odor and VOC reduction
• Antimicrobial nanotechnology integrated into filter media
• LED smart notification for filter and system status monitoring
• Faceplate rotates for 360-degree installation flexibility
• Translucent polycarbonate housing for visual inspection without disassembly
• Lifetime Limited Warranty and Made in USA

Compatibility

Designed for installation in forced-air HVAC duct systems operating on a standard 24-volt low-voltage circuit (18 to 32 volts AC, 60 Hz). No specific compatible equipment models were provided in the product data.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the air handler and set the thermostat to the off position before cutting into ductwork or making low-voltage wiring connections. Mount the unit in a straight duct section with adequate clearance per the manufacturer instructions, and use the rotating faceplate to orient the LED indicator for easy visual access. Verify low-voltage circuit wiring at the air handler control board before energizing.

Technical Specifications

• Filter Type: Carbon Filter with V-Twin EverCarbon Matrix
• Power Supply: 18 to 32 volts AC, 60 Hz
• Width: 7.6 inches
• Height: 7.6 inches
• Depth: 2.2 inches
• Housing Material: Translucent polycarbonate
• Warranty: Lifetime Limited
• Country of Origin: USA

Standard Information

• Brand: FRESH-AIRE UV
• Manufacturer Part Number: TUV-APCOX-ER3
