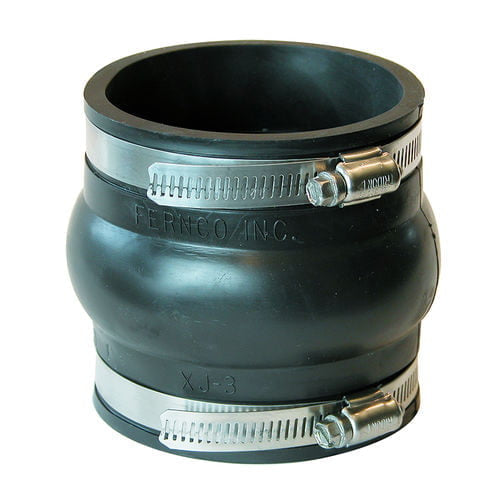

Frenco XJ-3 Expansion Joint Coupling 3 in

Product Description

The FRENCO XJ-3 expansion joint coupling allows thermal expansion and contraction of drain, waste, and vent pipes, as well as inside rainwater conductor systems. It features a unique one-piece construction and internal stops for positive positioning. The coupling eliminates malfunctioning sliding parts, jamming, freezing, or leaking, and is maintenance-free.

• Allows thermal expansion and contraction
• Unique 1-piece construction
• Internal stops for positive positioning

Product Highlights

This coupling is designed to eliminate common issues such as jamming and leaking, ensuring a maintenance-free solution for various piping systems.

Product Information

Standard Information

• Brand: FRENCO
• Manufacturer Part Number: XJ-3
• Country of Origin: Unknown

Technical Specifications

• Part Number: XJ-3
• Dimension A - inches: 3.42 in
• Dimension B - inches: 3.42 in
• Dimension C - inches: 3.97 in
• Dimension A - millimeters: 87 mm
• Dimension B - millimeters: 87 mm
• Dimension C - millimeters: 101 mm
• Fitting/Connector Type: Coupling
• Nominal Size: 3 in
• Length: 4 in
• Series: XJ Series
• End Style: Plastic
• Material: Flexible PVC
• Pressure Rating: 4.3 psi Tested
• Temperature Rating: 50 to 130 deg F
• Pipe Size: 3"
• Brand: Fernco
