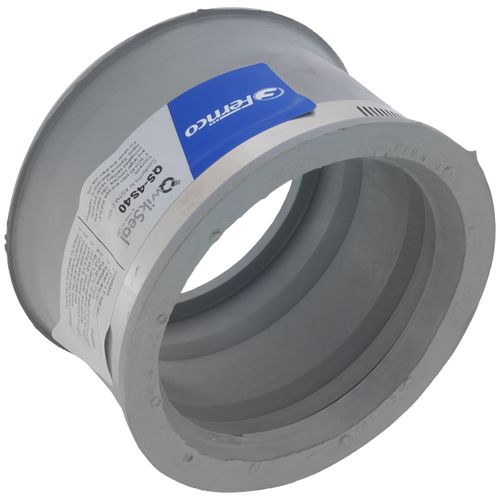

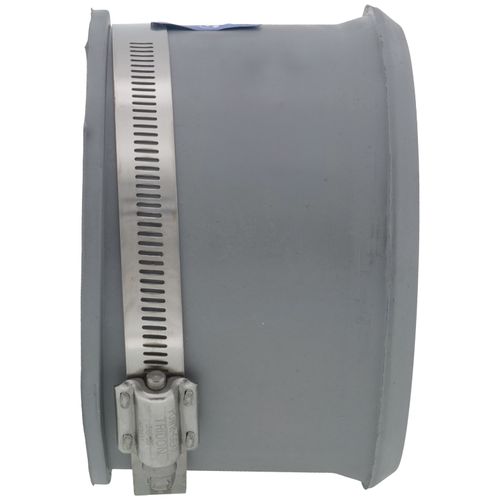

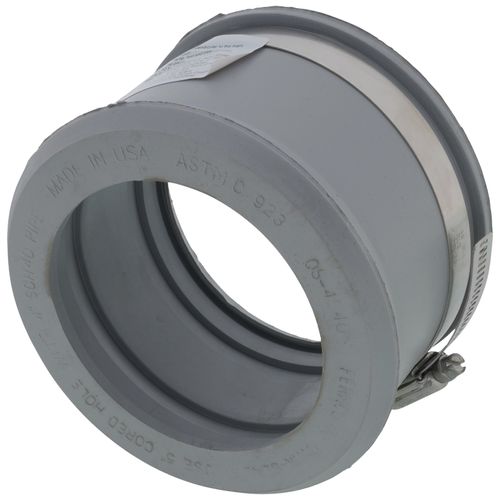

Frenco QS-4S40 QwikSeal Connector for Schedule 40 Pipe

Product Description

The Frenco QS-4S40 QwikSeal is a connector designed for Schedule 40 pipe installations. It allows for easy tapping into new or existing sanitary and storm pipes with minimal digging. This product connects four-inch Schedule 40 pipes to pipes eight inches and larger without disrupting existing bedding.

• Powerful versatility offers a water-tight seal for various pipe sizes and materials.
• Hassle-free installation that requires no glues or epoxies.
• Minimal excavation required for access to sanitary and storm lines.

Product Highlights

Product Information

Standard Information

• Product Type: Connector
• Size: 4 inches

Technical Specifications

• Part Number: QS-4S40
• Nominal Size: 4 in
• Suitable For Use With: 4 in SCH 40 Pipe to 8 in and Larger Pipes
• Gasket Material: Conforming to ASTM C 923
• Clamp Material: 316 Stainless steel
• Installation Torque: 60 inch-lb
• Free Torque Maximum: 6 inch-lb
• Ultimate Torque Minimum: 150 inch-lb
