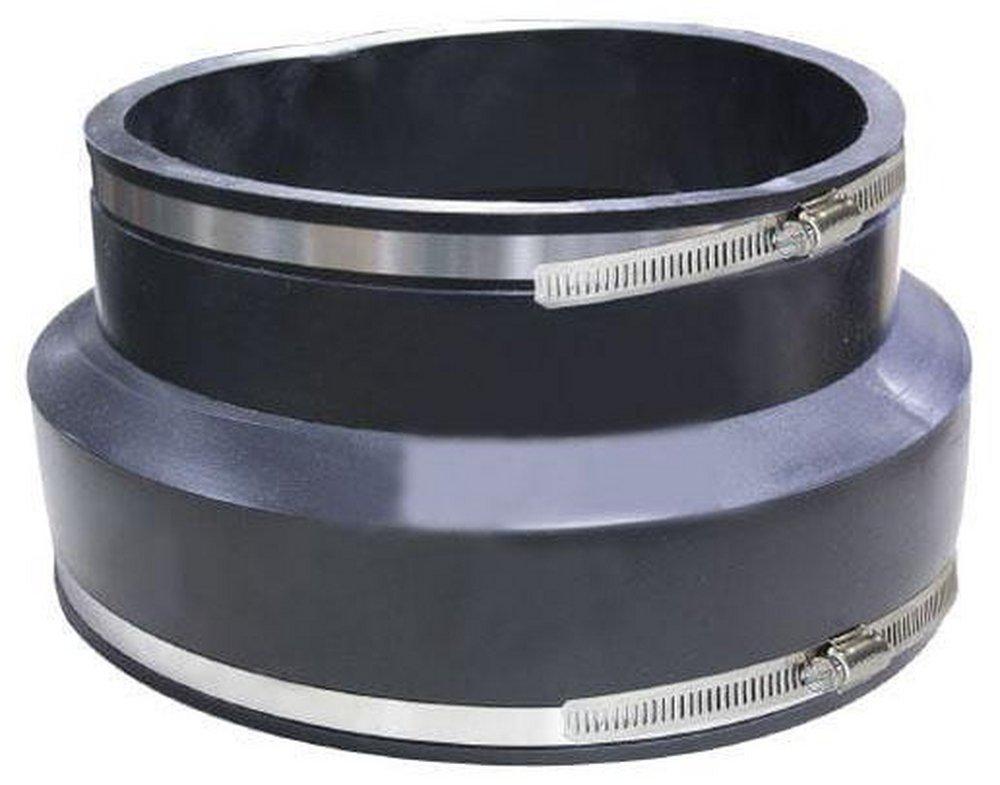

Frenco 1006-1515 Standard Stock Coupling 15 in Concrete x Cast Iron/Plastic

Product Description

The Fernco 1006-1515 standard stock coupling connects concrete to cast iron or plastic pipes. This coupling fits nominal size 15 in pipes with outer diameters ranging from 18.75''-20.25'' on one end, and 14.75''-16'' on the other end. Constructed from 60 Duro Shore A flexible PVC with 300 series stainless steel clamps, it provides a leak-proof seal without glues or primers.

• 300 series clamps used
• 60 in-lb installation torque
• Rated for above and below ground use

Product Highlights

Provides a permanent, leak-proof solution for sewer, drain, waste, and vent piping needs, ensuring enduring performance tailored to various requirements and standards.

Product Information

Standard Information

• Brand: FRENCO
• Manufacturer Part Number: 1006-1515
• Country of Origin: USA

Technical Specifications

• Brand: Fernco
• Domestic/Import: Domestic
• End Style: Concrete x Cast Iron/Plastic
• Fitting/Connector Type: Coupling
• Length: 10 in
• Material: 60 Duro Shore A Flexible PVC
• Nominal Size: 15 in
• Pressure Rating: 4.3 psi
• Series: 1006
• Temperature Rating: -30 to 140 deg F
• Type: Standard
• Product Type: Plumbing Part
• Width: 20.64"
• Height: 9.68"
• Finish: Black
• Connection Type: Coupling
• Flexible: Yes
• Id 1: 19.75
• Id 2: 15.5
• Maximum Pressure Rating: 4.3
• Maximum Temperature: 140
• Minimum Temperature: -30
• Range 1 From: 18.75
• Range 1 To: 20.25
• Range 2 From: 14.75
• Range 2 To: 16
• Rating Certification: ASTM D 5926, C 1173 CSA B602 and UPC
