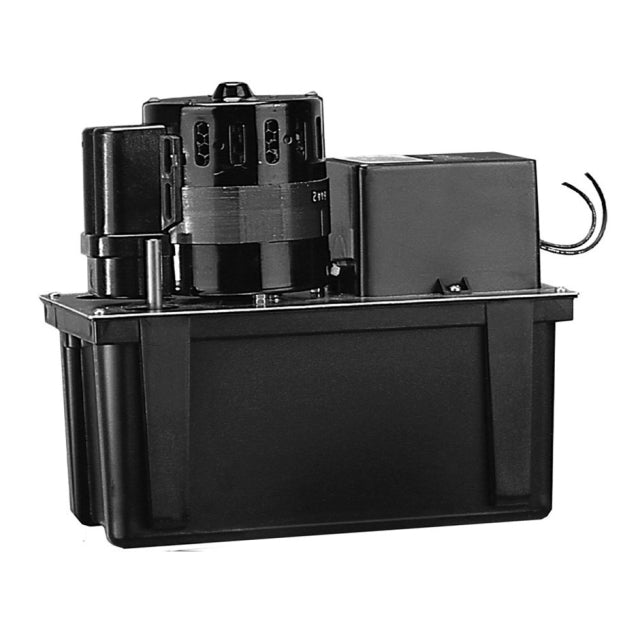

Franklin Electric VCL-45ULS 45 foot lift pump 1/5 HP (1 gallon)

Product Description

The Franklin Electric VCL-45ULS is a condensate removal pump with a vertical centrifugal design and automatic start/stop operation using a solid polymer float-activated switch with overflow detection. It has a 1 gallon ABS reservoir, 3/8 inch copper tube discharge, 450 GPH flow and a maximum 45 foot head. The thermally protected, fan-cooled PSC motor runs on 115 VAC, 60 Hz at 3.5 A and includes a 6 ft grounded power cord and safety overflow switch leads.

• Vertical centrifugal condensate pump with 1 gallon ABS reservoir; 450 GPH flow to 45 foot head (19.5 PSI).
• 115 VAC, 60 Hz input; 3.5 A draw; 1/5 HP thermally protected, fan-cooled PSC motor.
• Solid polymer float-activated switch with dual NO/NC overflow detection; 3/8 inch copper discharge; 6 ft grounded power cord and two 5 inch safety overflow switch lead wires.

Product Highlights

Automatic vertical centrifugal condensate pump, 450 GPH to 45 ft head, CSA certified

Product Information

Standard Information

• Brand: FRANKLIN ELECTRIC
• Manufacturer Part Number: VCL-45ULS

Technical Specifications

• Brand: Franklin Electric
• Model Number: VCL-45ULS
• Manufacturer Part Number: 553240
• Pump Type: Automatic, vertical centrifugal
• Input Voltage: 115 VAC
• Frequency: 60 Hz
• Input Current: 3.5 A
• Power Rating: 1/5 HP
• Motor Type: Thermally protected, fan cooled, PSC
• Flow Rate: 450 GPH
• Max Head: 45 Foot
• Pressure Rating: 19.5 PSI
• Reservoir Capacity: 1 gallon
• Reservoir Material: ABS plastic
• Reservoir Inlet Size: 1-1/8 inch
• Discharge Size: 3/8 inch
• Discharge Connection: Copper tube
• Impeller Material: Polypropylene
• Shaft Material: Stainless steel
• Housing Material: ABS plastic
• Power Cord: 6 foot grounded 3-conductor with 3-prong plug
• Float Switch: Solid polymer float-activated switch
• Overflow Detection: Dual NO/NC overflow detection (set to NO from factory)
• Dimensions: 12.11 Inch Length x 6 Inch Width x 10.85 Inch Height
• Temperature Rating: 120 Deg F (water)
• Certifications: CSA (Canada and US)
• Application: Air conditioning, refrigeration, dehumidification, condensing furnaces and boilers
• Inclusions: Solid polymer float switch, overflow detection switch, two 5 inch safety overflow switch lead wires, 6 ft grounded power cord
