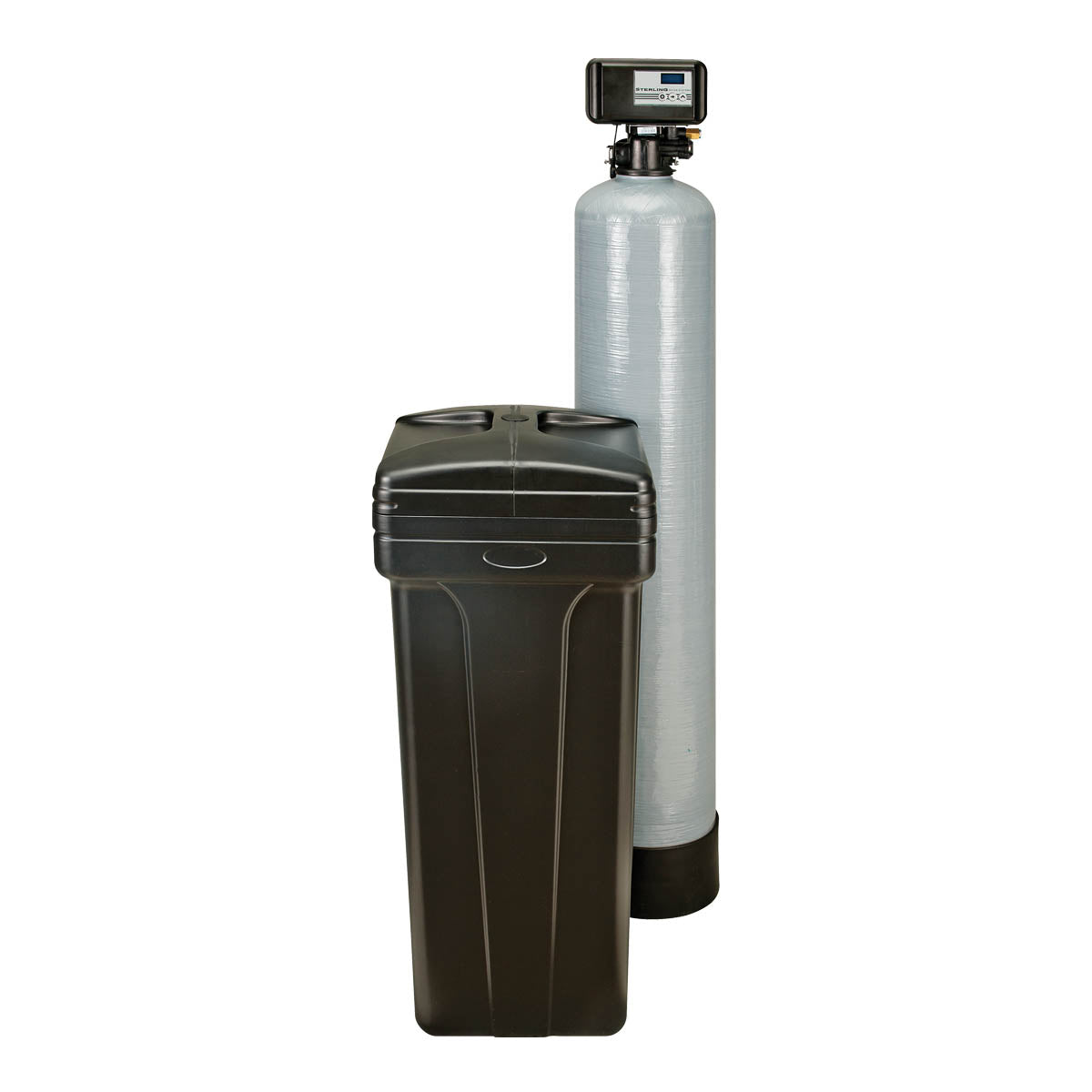

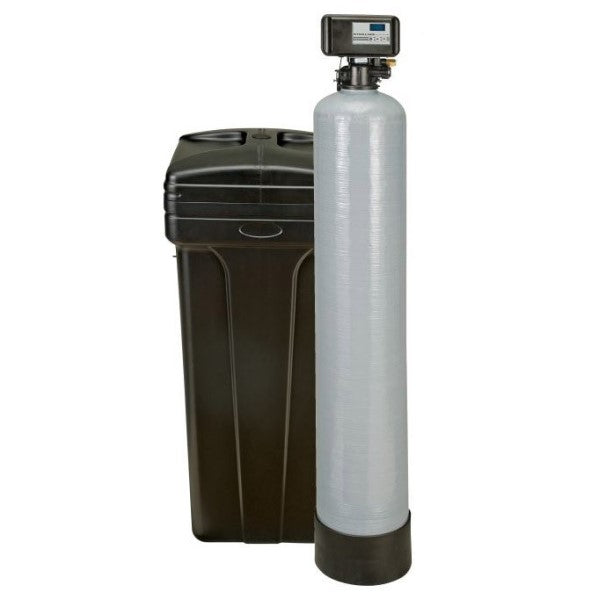

Franklin Electric NES-1 Water Softener System

Product Description

The Franklin Electric NES-1 is a water softener system tailored for residential applications. This model features a bypass valve made of stainless steel for easy switching between softened and unsoftened water. It is constructed from durable non-corrosive fiberglass and stainless steel materials. The system includes a piston control valve and a safety brine valve that prevents overflow.

• Stainless steel bypass valve for switching water types
• Constructed with non-corrosive materials
• Equipped with a safety brine valve

Product Highlights

This system removes ferrous iron from water and is compatible with all types of softener salt.

Product Information

Standard Information

• Product Type: Water Softener System
• Tank Capacity: 58 gallons

Technical Specifications

• Capacity: 30000 grains
• Connection Size: 1 inch
• Contaminant Removal: Iron
• Flow Rate: 14 gallons per minute
• Material: Fiberglass, Stainless Steel
• Control Valve Type: Piston
• Brine Tank Diameter: 14 inches
• Brine Tank Height: 34 inches
• Maximum Operating Pressure: 100 psi
• Maximum Operating Temperature: 100 degrees F
• Minimum Operating Pressure: 25 psi
• Minimum Operating Temperature: 33 degrees F
• Number of Brine Tanks: 1
• Number of Resin Tanks: 1
• Overall Depth: 18 inches
• Overall Height: 56 inches
• Overall Width: 27 inches
• Pipe Size: 3/4 inch
• Total Number of Tanks: 2
