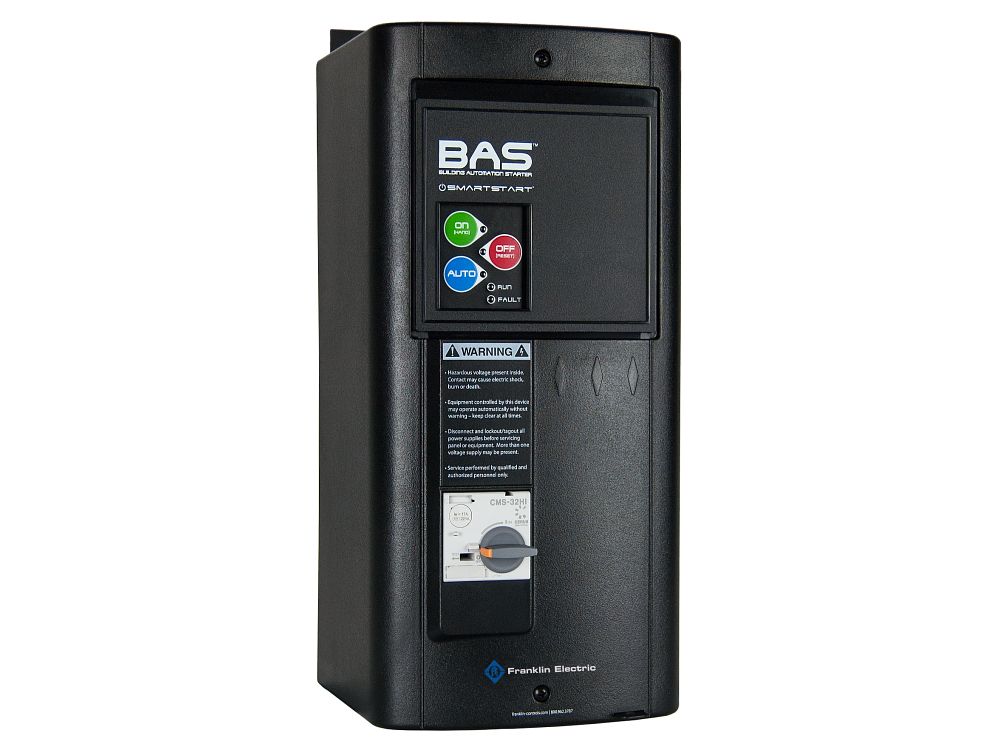

Franklin Electric BAS1-9/P-G8-40 Bas combo starter 9 A (NEMA 1)

Product Description

Franklin Electric BAS1-9/P-G8-40 is a combination starter with disconnect designed for building automation system motor and start applications. It is housed in a NEMA 1 enclosure and rated for 9 A with Hand/Off/Auto control and LED status indication. The unit accepts a wide input voltage range and includes adjustable overload protection for motor protection and integration with BAS controls.

• Combination starter with disconnect in a NEMA 1 enclosure; intended for BAS motor/start applications
• 9 A current rating with adjustable overload protection range of 1 to 40 A and wide input voltage (200 to 600 V)
• Hand/Off/Auto (HOA) control with LED indication for status and basic operator interface

Product Highlights

Combination motor starter with disconnect, HOA control, LED status, 1�40 A adjustable overload

Product Information

Standard Information

• Brand: FRANKLIN ELECTRIC
• Manufacturer Part Number: BAS1-9/P-G8-40
• Country of Origin: United States

Technical Specifications

• Brand: Franklin Electric
• MPN: BAS1-9/P-G8-40
• Model: BAS Combo Starter
• Enclosure Rating: NEMA 1
• Amperage Rating: 9 A
• Input Voltage: 200 to 600 V
• Adjustable Overload Range: 1 to 40 A
• Control: Hand/Off/Auto (HOA)
• Indicator: LED indication
• Phase: 1 ph, 3 ph
• Frequency: 50/60 Hz
• Dimensions: 15.7 in L x 7.42 in W x 6.57 in H
• Operating Temperature: -20 to 60 deg C
• Interrupt Rating: 100 kA, 65 kA, 25 kA
• Horsepower Range: 1 to 5 hp
• Features: Combo starter with disconnect; SmartStart motor protection; advanced control inputs; logging; lockable enclosure; hand/off/auto keypad with LED status indicators
