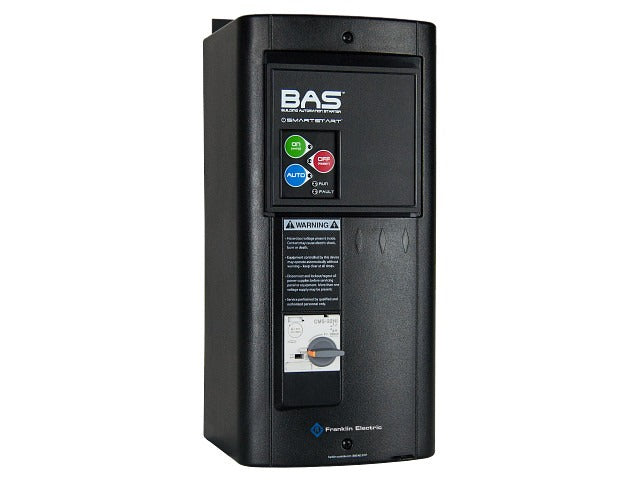

Franklin Electric BAS1-18/P-40 Motor Starter 200-600V

Product Description

The FRANKLIN ELECTRIC BAS1-18/P-40 is a full-featured motor starter engineered for seamless integration with building automation systems (BAS). It accepts a wide input voltage range of 200 to 600 VAC and features a 1 to 40A adjustable overload, making it adaptable to a broad range of motor loads. The unit supports both single-phase and three-phase operation at 50Hz or 60Hz. Advanced I/O includes Firemans Override and damper control outputs, giving controls technicians and mechanical contractors the flexibility needed for complex HVAC and mechanical system applications.

This starter is suited for commercial and light industrial HVAC installations where direct integration with a building automation system is required. Typical applications include air handling units, exhaust fans, pumps, and other motor-driven equipment where damper coordination and Firemans Override functionality are part of the sequence of operations. The Type 1 enclosure rating makes it appropriate for indoor electrical room or mechanical room installations.

Key Features

• 200 to 600 VAC input range covers most commercial power distribution configurations
• 1 to 40A adjustable overload suits a wide variety of motor sizes
• Firemans Override I/O for life-safety integration in HVAC applications
• Damper control output simplifies wiring in air handling and ventilation systems
• Compatible with both single-phase and three-phase motors at 50Hz and 60Hz
• Type 1 enclosure rated for indoor mechanical and electrical room installations

Compatibility

Designed as an OEM-style motor starter for commercial HVAC and mechanical system applications requiring BAS integration with adjustable overload protection across 200 to 600 VAC power systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and any applicable local codes. Disconnect and lock out all power to the panel and motor circuit before mounting or wiring the starter. Verify that branch circuit protection is supplied separately, as branch protection is not included with this unit. Confirm input voltage and motor full-load amperage before setting the adjustable overload.

Technical Specifications

• Input Voltage: 200-600 VAC
• Frequency: 50Hz/60Hz
• Phase: Single-Phase / Three-Phase
• Adjustable Overload Range: 1-40A
• Maximum Current: 22A
• kAIC Rating (208V): 5 kA
• kAIC Rating (230V): 5 kA
• kAIC Rating (460V): 5 kA
• kAIC Rating (575V): 5 kA
• Branch Protection Included: No
• Enclosure Rating: Type 1
• Product Length: 15.7 inches
• Product Width: 7.42 inches
• Product Height: 6.1 inches
• Warranty: 12 months from installation / 24 months from manufacturing date

Standard Information

• Brand: FRANKLIN ELECTRIC
• Manufacturer Part Number: BAS1-18/P-40
