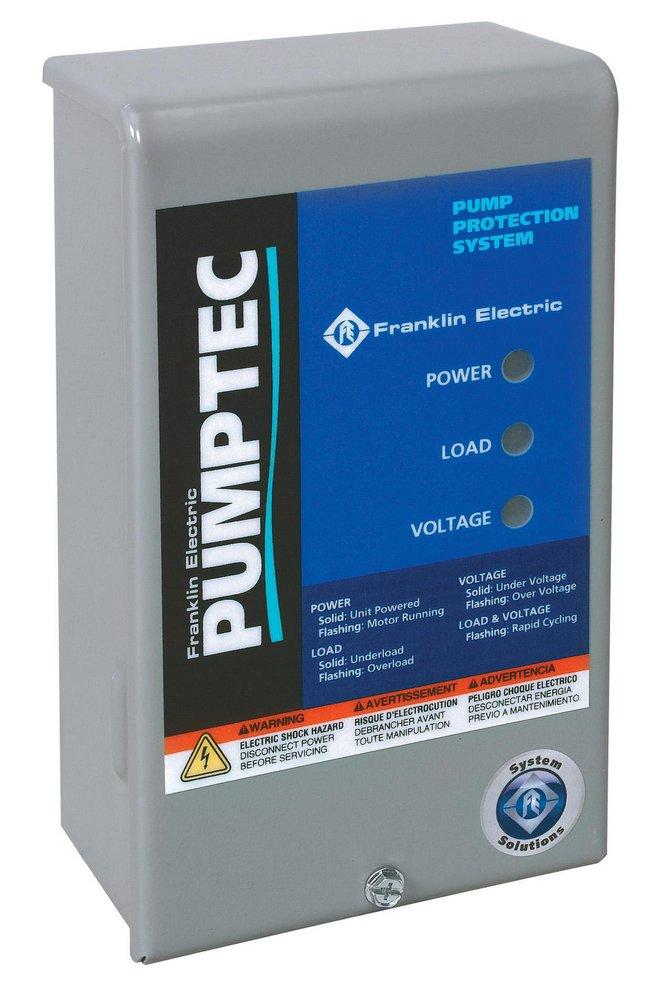

Franklin Electric 5800020610 115230V Pumptec Motor Protection Device

Product Description

The Franklin Electric 5800020610 is a 115/230V Pumptec motor protection device designed to safeguard your motors. This device helps prevent motor failure and extends life by monitoring motor load and electrical conditions. It automatically interrupts power during adverse situations such as low-flow wells or pump damage. With indicator lights, it provides clear status feedback.

• Run and fault indicator lights
• Easily adjustable sensitivity settings
• Heavy duty relay for reliable operation

Product Highlights

Protects motors from various adverse conditions by monitoring load and power.

Product Information

Standard Information

• Brand: Franklin Electric
• MPN: 5800020610

Technical Specifications

• Voltage: 115/230V
• HP Rating: 1/3 to 1-1/2
• Weight: 1 lb.
• Catalog Number: 5800020610
• Dimensions (L x W x H): 8 13/32 in x 4 13/16 in x 2 27/32 in
• UL Listed/CSA Certified
• Protection Features: Underload, under/over voltage, rapid cycle, overload/locked pump
• Alarm Circuit Contacts
