Franklin Electric 554631 condensate pump VCMA-20 Pro 20 feet lift 78 GPH 230 VAC

Product Description

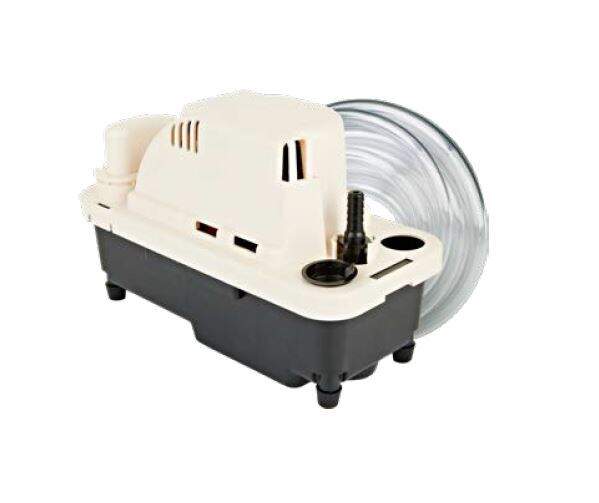

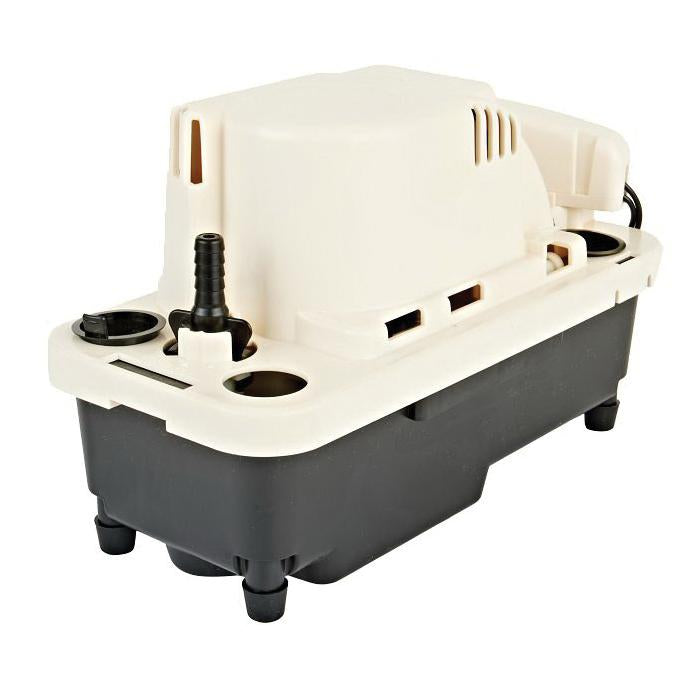

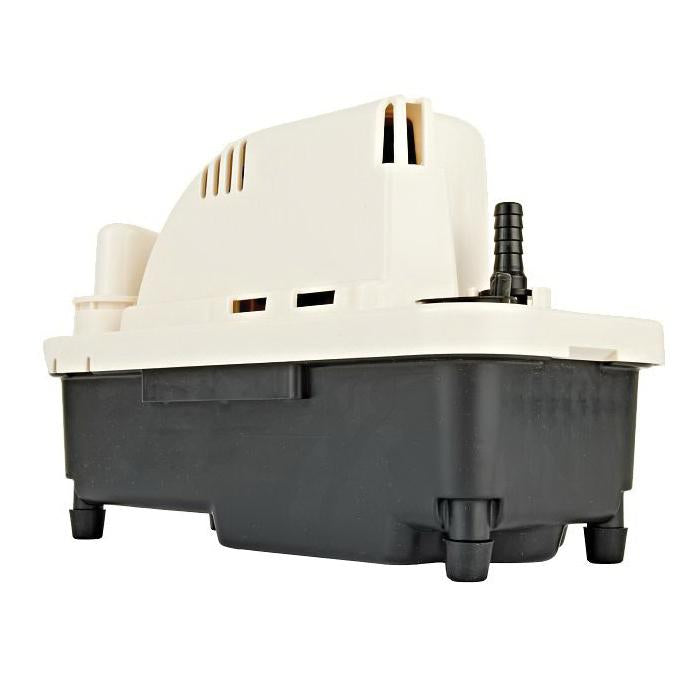

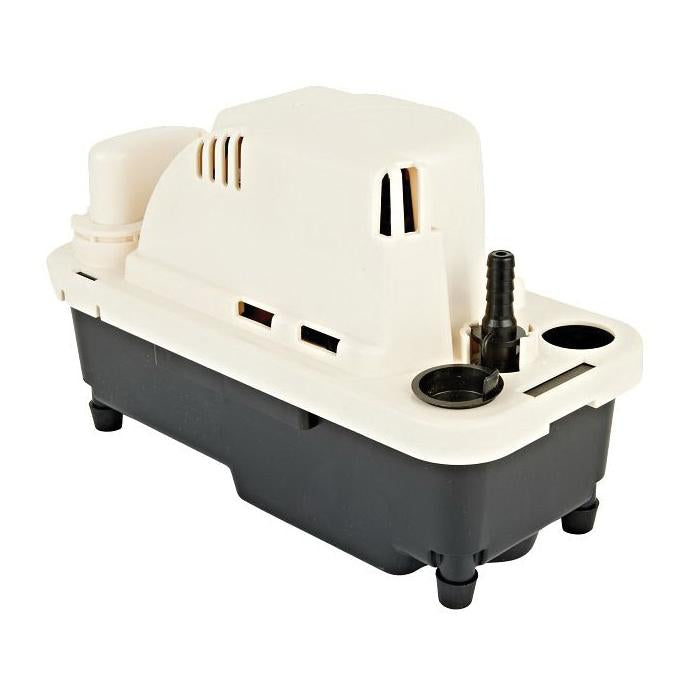

The Franklin Electric 554631 is a condensate removal pump from the VCMA-20 Pro series, designed for automatic collection and removal of condensate. This pump features a 1/30 hp motor and operates at 230 VAC, delivering a maximum flow rate of 1.3 gpm at 1 foot of head. It is capable of a 19 ft shut-off level and handles media temperatures up to 284 degrees F, making it suitable for various HVAC and refrigeration applications.

• Includes anti-sweat sleeve, check valve, clear tubing, and tank for comprehensive installation.
• Features a 1/30 hp motor operating at 1.5 A, with a 6 ft cord for flexible placement.
• Designed for a 19 ft shut-off level and compatible with 3/8 inch discharge pipe size.

Product Highlights

High-capacity condensate removal pump with 1/30 hp motor, 230 VAC operation, and 19 ft shut-off level.

Product Information

Standard Information

• Brand: FRANKLIN ELECTRIC
• Manufacturer Part Number: 554631
• Country of Origin: Mexico

Technical Specifications

• Horsepower: 1/30 hp
• Includes: Anti-Sweat Sleeve, Check Valve, Clear Tubing, OD Rigid Plastic or Copper Tubing, Tank, Tank Bracket, VC Tubing
• Maximum Flow Rate at 1 Foot of Head: 1.3 gpm
• Flow Rate: 78 GPH
• Maximum Media Temperature: 284 Degrees F
• Series: VCMA-20 Pro
• Series Family: VCMA
• Shut Off Level: 19 ft
• Amperage: 1.5 A
• Discharge Pipe Size: 3/8 in
• Cord Length: 6 ft
• Type: Condensate Pump
• Voltage: 230 VAC
• Model: VCMA-20ULS-PRO
• Frequency: 50/60 Hz
• Impeller Material: Glass Filled Polypropylene
• Material: Plastic
• Power: 75 W
• Pressure: 8.6 psi
