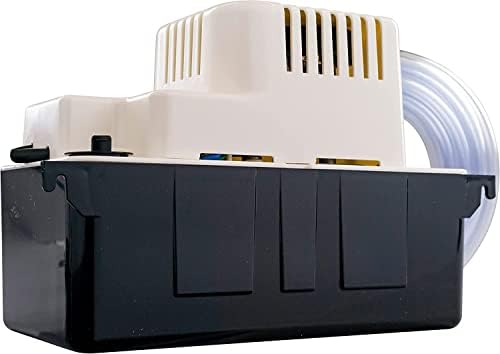

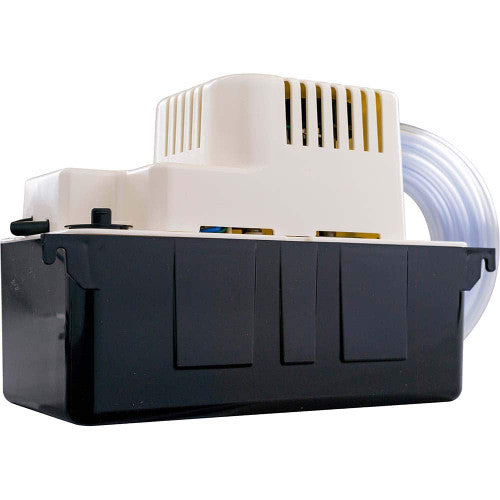

Franklin Electric 554435 Little Giant VCMA-20 115V (1/2 Gal) 554435

Product Description

Franklin Electric 554435 is a condensate removal pump for HVAC applications that operates at 115V with a 1/3 HP motor and a maximum working pressure of 8.6 PSI. The unit includes a 1/2 gallon holding tank, vertical float switch with overflow detection, and a 3/8" barbed discharge with check valve. It delivers approximately 80 GPH at 1 ft and shuts off at a 20 ft lift for condensate removal.

• 115V corded electric operation with 1/3 HP motor and thermally protected, fan-cooled design
• 1/2 gallon tank capacity with vertical float switch and dual-function overflow detection (NO/NC)
• 3/8" O.D. barbed discharge with built-in check valve; performance about 80 GPH at 1 ft and 20 ft shut-off

Product Highlights

115V HVAC condensate pump with 1/2 gallon tank, 3/8" discharge, 80 GPH at 1 ft, and 20 ft shut-off

Product Information

Standard Information

• Brand: FRANKLIN ELECTRIC
• Manufacturer Part Number: 554435
• Country of Origin: United States

Technical Specifications

• Brand: Franklin Electric
• Manufacturer Part Number: 554435
• Model: Little Giant VCMA-20
• Type: Condensate Pump
• Input Voltage: 115 V AC, 60 Hz
• Power Source: Corded Electric
• Horsepower: 1/3 HP
• Operating Amperage: 1.5 A (see note on consistency)
• Flow Rate: 80 GPH at 1 ft (approx. 1.08 GPM)
• Maximum Lifting Height: 20 ft
• Shut-off Height: 20 ft
• Maximum Pressure: 8.6 psi
• Tank Capacity: 1/2 gallon
• Discharge: 3/8" O.D. barbed discharge with built-in check valve
• Inlet: Three 1-1/8" inlet holes (two with covers)
• Power Cord: 6 ft cord with 3-prong 115V plug
• Switch Type: Vertical float switch; on at 2.5" (63.5 mm); off at 1.1" (27.9 mm)
• Overflow Switch: Dual function NO/NC (factory set to NO)
• Maximum Water Temperature: 140 F (60 C)
• Material: ABS tank, motor cover and volute; stainless steel motor shaft
• Motor: Thermally protected, fan-cooled
• Item Dimensions: 11" x 5" x 7"
• Item Weight: 5.5 lb
• Country of Origin: United States
• UPC: 010121544352
• GTIN: 00010121544352
• Certifications: CSA
