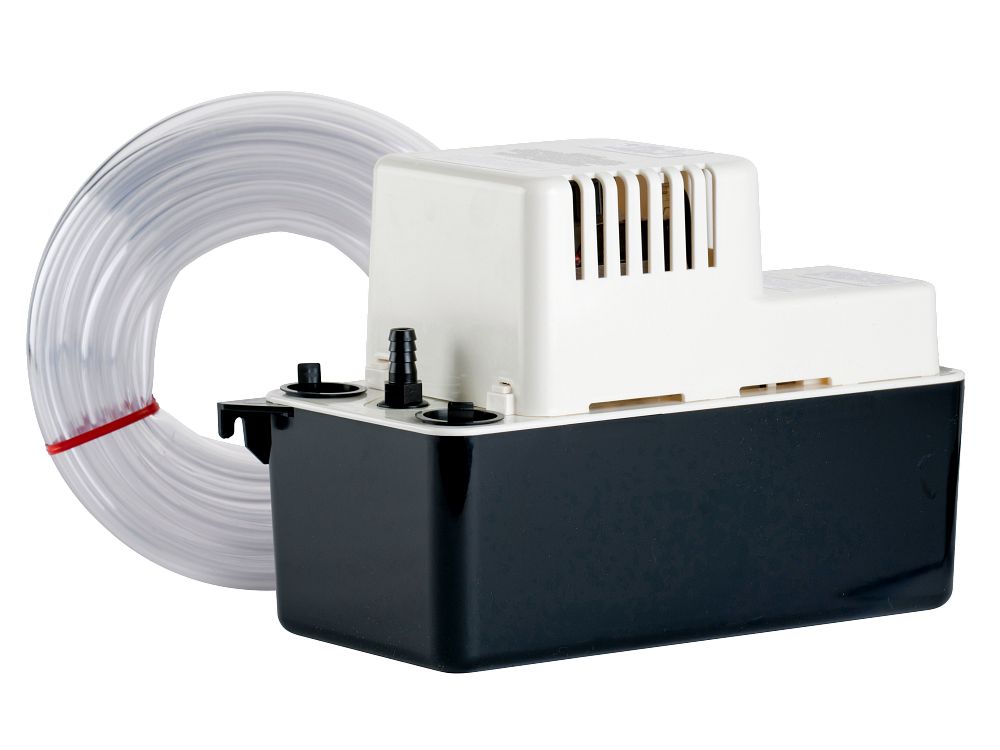

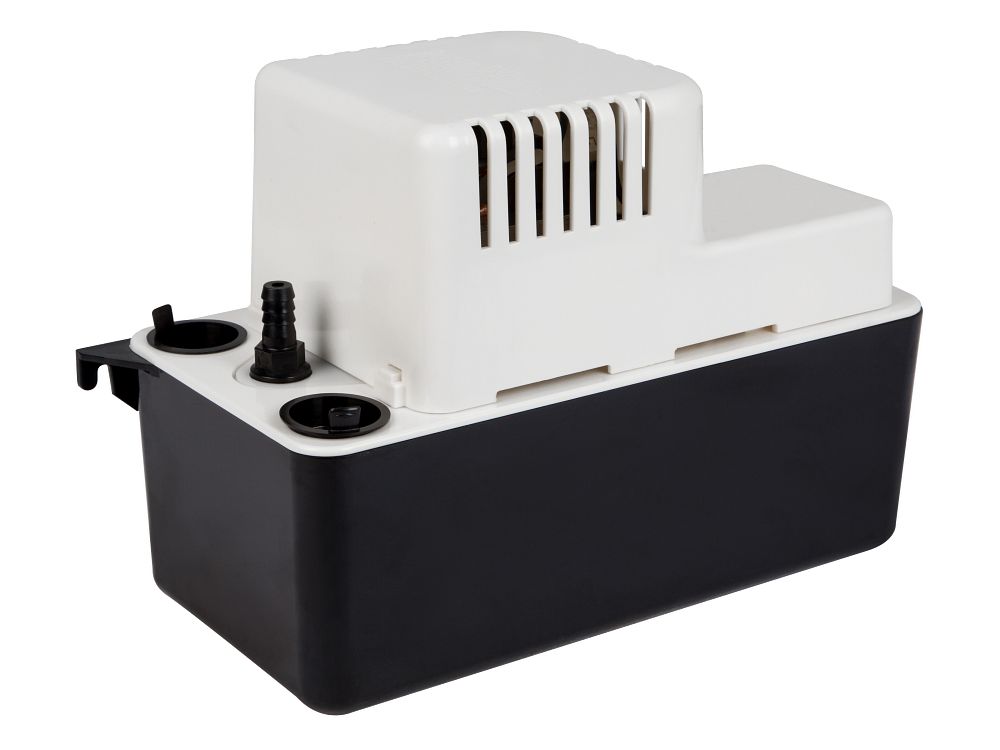

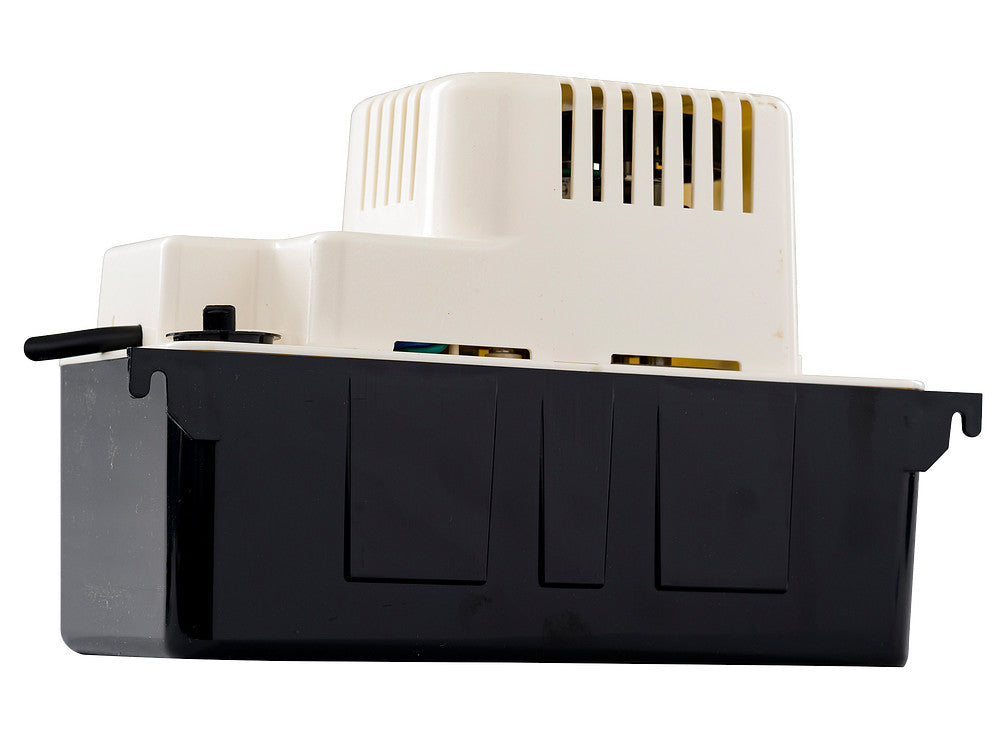

Franklin Electric 554425 VCMA-20ULS Condensate Pump 1/30 hp

Product Description

The Franklin Electric 554425 VCMA-20ULS is a condensate pump designed for the automatic collection and removal of condensate from HVAC systems, including air conditioning, refrigeration, and dehumidification units. The unit features a 1/30 horsepower motor and has a tank capacity of 0.5 gallons. This pump comes with a safety switch and a removable 3/8-inch barbed check valve, making it suitable for systems without gravity drainage.

• Automatic condensate removal for HVAC units
• Includes safety switch and removable check valve
• Works well with high-efficiency gas furnace condensate

Product Highlights

The Franklin Electric VCMA-20ULS is ideal for applications where gravity drainage is not an option. Its compact design and included safety features help ensure reliable operation.

Product Information

Standard Information

• Brand: Franklin Electric
• Power Source: Corded Electric

Technical Specifications

• Motor Power: 1/30 hp
• Voltage: 115 VAC
• Full Load Amps: 1.5 A
• Max Flow Rate: 1.33 gpm / 80 gph
• Tank Capacity: 0.5 gallons
• Shut-Off Height: 20 ft
• Max Suction Lift: 0
• Product Dimensions: 11 inches x 5 inches x 7 inches
• Weight: 4.1 lb
• Cord Length: 6 ft
• Safety Switch Included: Yes
• Impeller Type: Semi-open
• Check Valve: Yes
