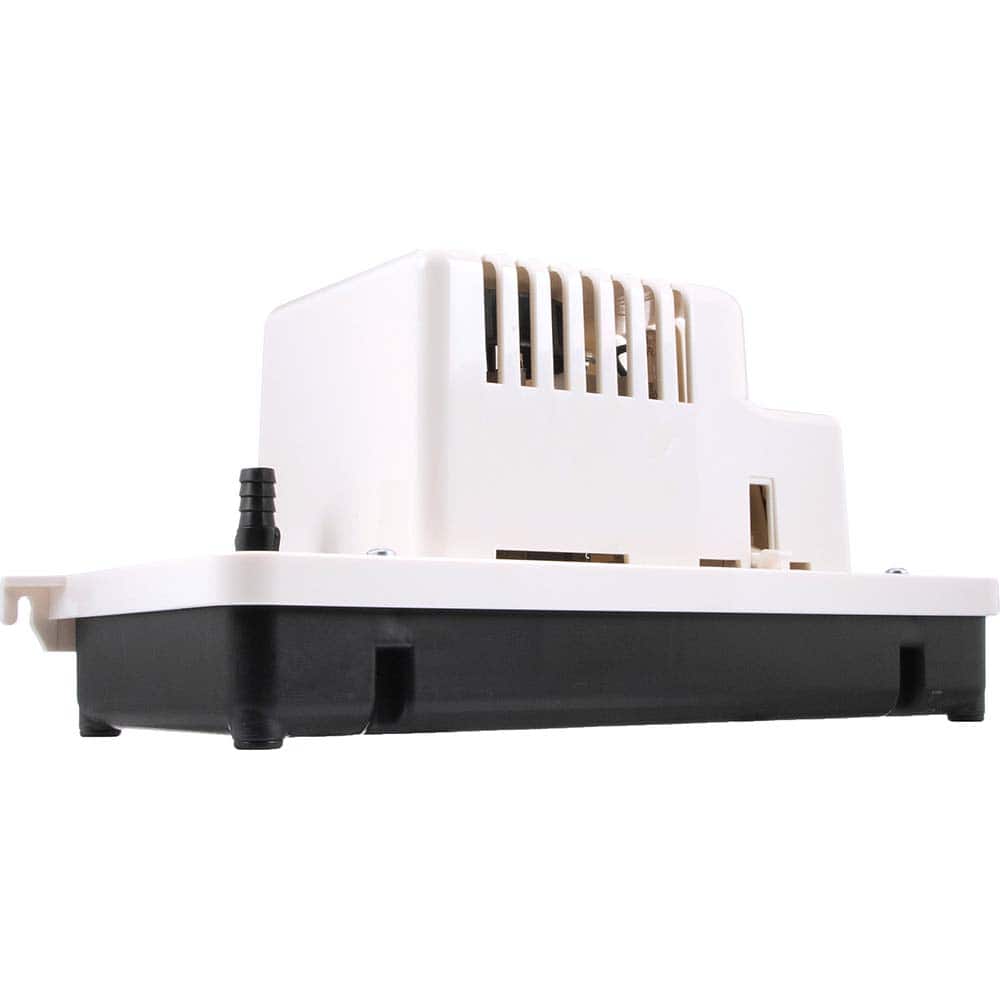

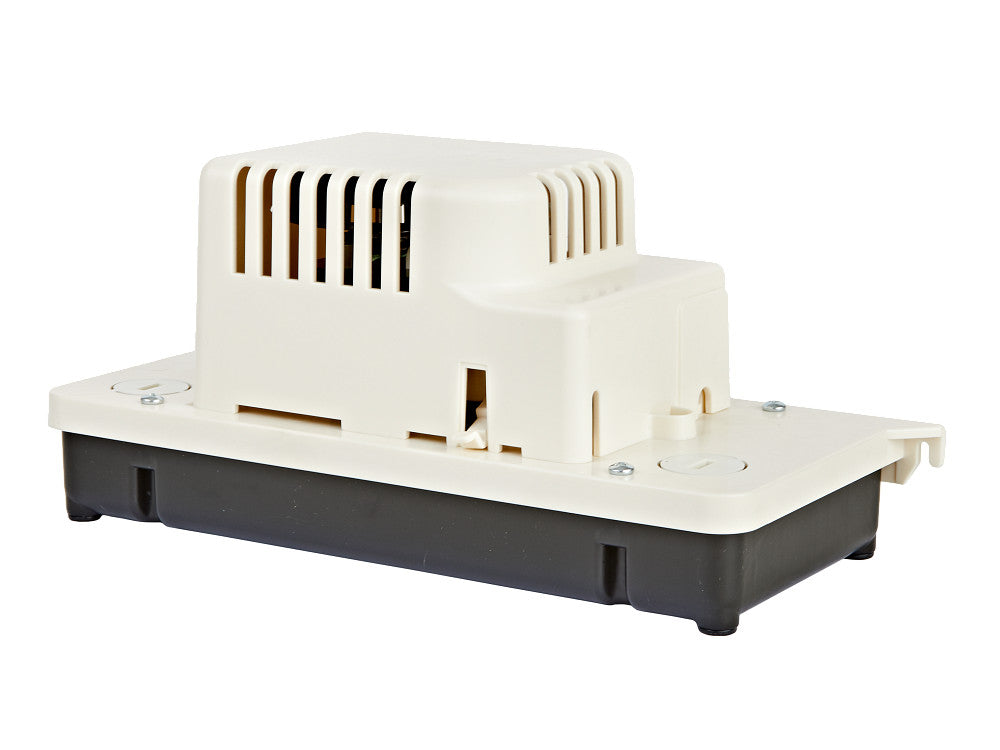

Franklin Electric 554202101 Condensate Pump 80 GPH 230 VAC Low-Profile

Product Description

The FRANKLIN ELECTRIC 554202101 is a condensate pump designed for efficient removal of condensate. This low-profile pump operates at 230 VAC and has a flow rate of 80 GPH, making it suitable for various HVAC and boiler applications. It features a 1/30 hp motor and includes a safety switch for enhanced operation. The pump is built with a durable plastic body and is capable of handling fluid temperatures up to 120 °F.

• Includes safety switch for operational security
• Equipped with a 1/30 hp motor for reliable performance
• Low-profile design ideal for installations in limited space applications

Product Highlights

Low tank height for fitting into tight spaces, with thermal overload protection and suitability for high-efficiency condensing equipment.

Product Information

Standard Information

• Brand: FRANKLIN ELECTRIC
• Manufacturer Part Number: 554202101

Technical Specifications

• Brand: FRANKLIN ELECTRIC
• MPN: 554202101
• Model: VCCA-20ULS
• Series: VCC
• Type: Low Profile Tank
• Input Voltage: 230 VAC
• Flow Rate GPH: 80 GPH
• Flow Rate GPM: 1.33 gpm
• Horsepower: 1/30 hp
• Frequency: 50Hz/60Hz
• Full Load Amps: 0.6 A
• Full Load Watts: 75 W
• Cord Length: 6 ft
• Max Pressure: 7.4 PSI
• Shut-Off Head: 17 ft
• Safety Switch: Yes
• Max Fluid Temperature: 120 °F
• Pump Body Material: ABS Plastic
• Discharge Size: 0.38 "
• Tubing Included: No
• Certifications: CSA
• Applications: Air Conditioner, Gas Furnace, Condensing Boilers
• Phase: Single
• Tank Capacity: 1 Quart
