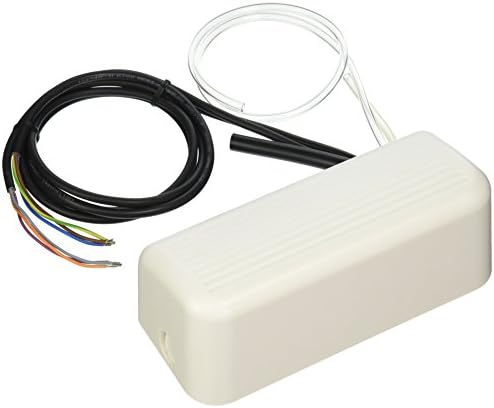

Franklin Electric 553712 Condensate Pump 20 Watt 35 feet Head

Product Description

The FRANKLIN ELECTRIC 553712 is a condensate removal pump designed for efficient operation in HVAC systems. This 20 Watt, 230 VAC pump features a 35-foot head, making it suitable for various condensate management applications, including mini-split and ductless air conditioners. It includes an 8 amp resistive and 250 VAC alarm contact for safety and system integration. The pump is equipped with 5/16 inch inlet tubing and 5/32 inch discharge tubing, ensuring proper condensate drainage.

• Pump float retainer for easy serviceability

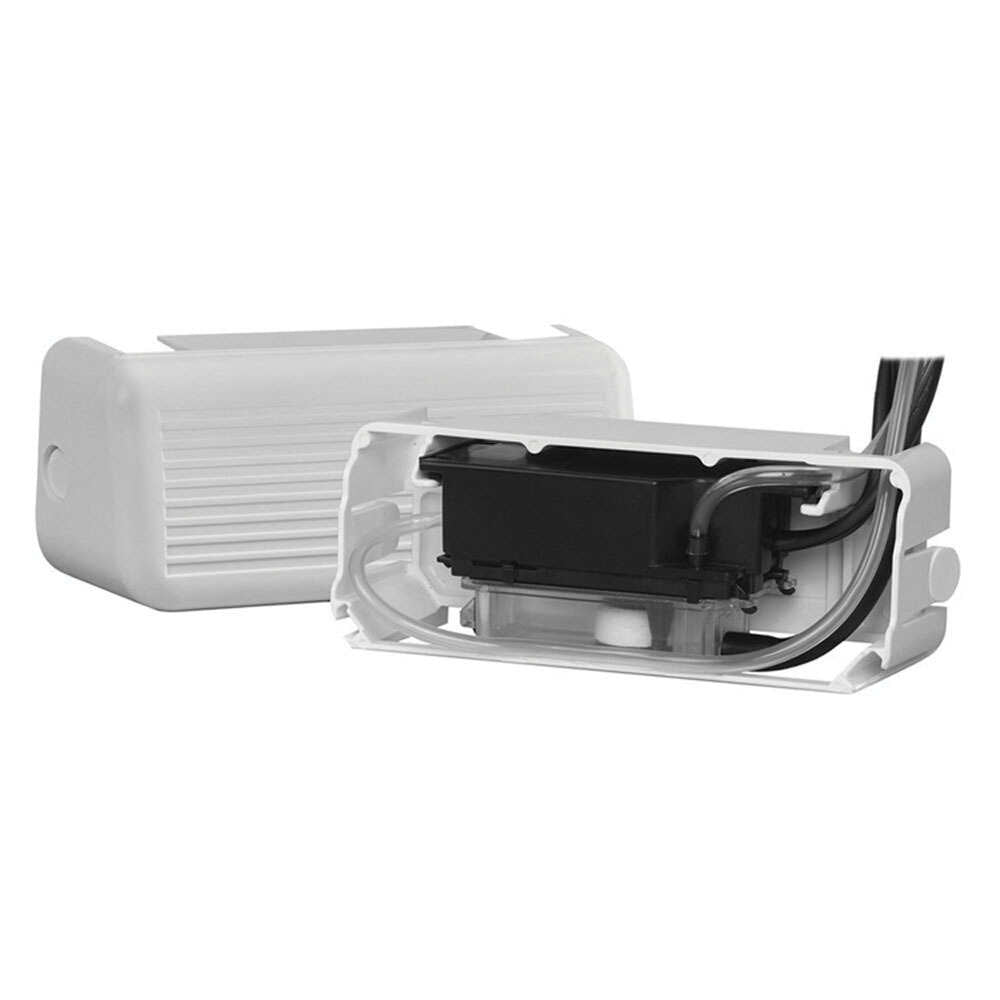

• Clear reservoir for visual inspection of water level, float and filter
• Safety alarm ready, suitable for building automation system

Product Highlights

Efficient 20 Watt, 230 VAC condensate pump with 35 ft head and safety alarm contacts for HVAC systems.

Product Information

Standard Information

• Brand: FRANKLIN ELECTRIC
• Manufacturer Part Number: 553712

Technical Specifications

• Power Consumption: 20 W
• Input Voltage: 230 VAC
• Max Head: 35 ft
• Alarm Contact: 8 amp resistive, 250 VAC
• Inlet Tubing: 5/16 inch with universal adapter
• Discharge Tubing: 5/32 inch with 1/4 inch adapter
• Thermal Protection: 176 deg F
• Model Number: EC-OP-K
• Style: Mini-Split
• Material: Plastic
• Flow Rate: 13 LPH
• Reservoir: None
• Max Operating Temperature: 120 Degrees F
• Current: 0.1 Amps
• Max Pressure: 15.2 psi
• Float Material: Polystyrene
• Certifications: cCSAus
