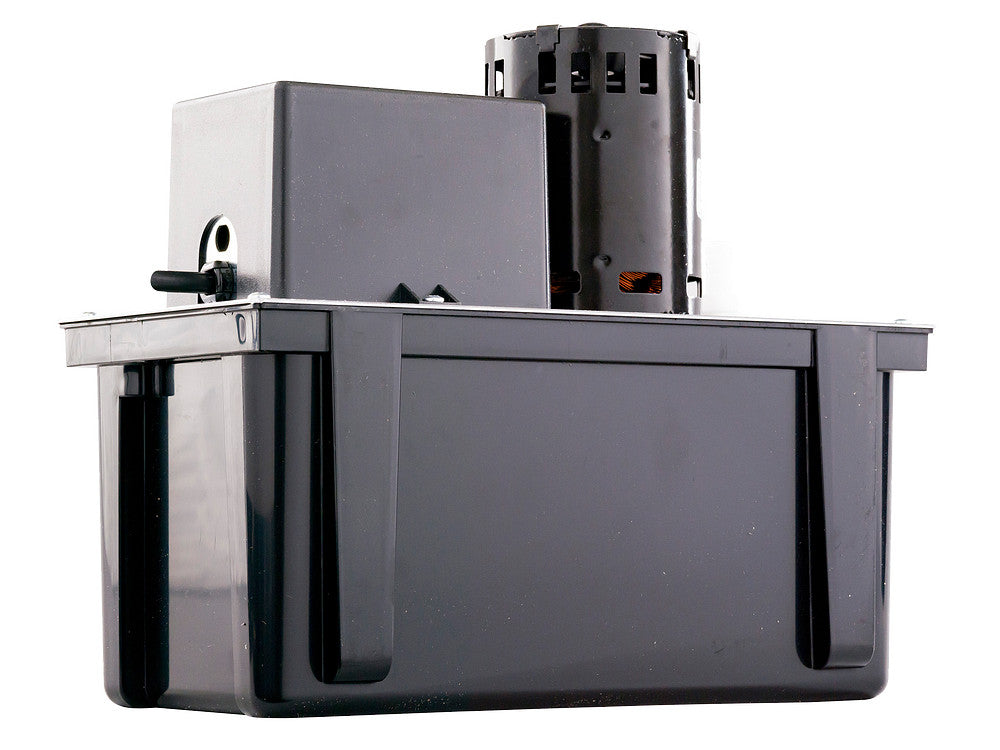

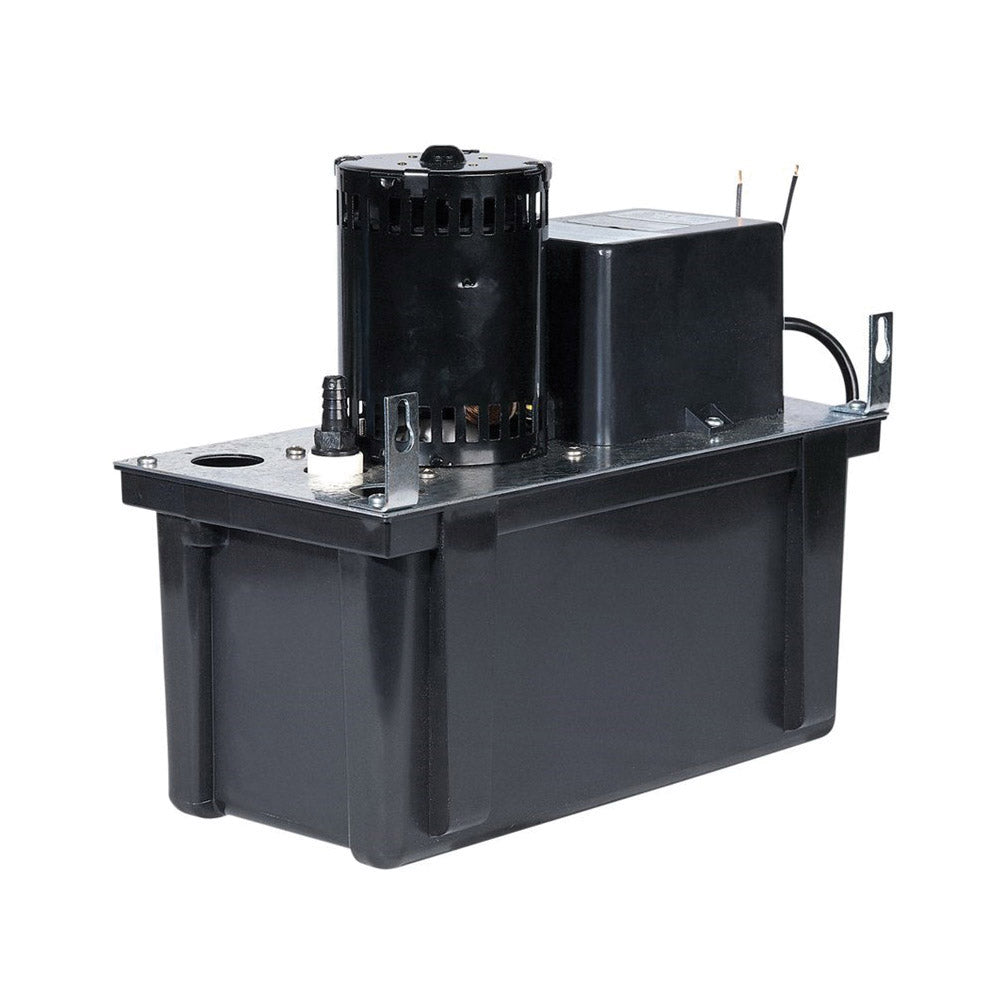

Franklin Electric 553201 VCL-24ULS Condensate Pump 115V 24 feet Head

Product Description

The Franklin Electric 553201 VCL-24ULS Condensate Pump is an automatic condensate removal pump designed for efficient operation. It features a 1/18 HP motor and operates at 115 VAC, providing a maximum head of 24 feet. This pump is suitable for collecting and removing condensate from air conditioning, refrigeration, and dehumidification equipment, especially when gravity drainage is not feasible. It offers a flow rate of 270 gph and includes a safety switch for reliable performance.

• Automatic condensate removal for HVAC, refrigeration, and dehumidification systems.
• Features a lo-profile design with a 24-foot shutoff head and 270 gph flow rate.
• Equipped with a safety switch and designed for continuous duty operation.

Product Highlights

This automatic condensate pump provides reliable removal for HVAC and refrigeration units, featuring a high head and efficient flow in a compact design.

Product Information

Standard Information

• Brand: FRANKLIN ELECTRIC
• Manufacturer Part Number: 553201
• Country of Origin: United States

Technical Specifications

• Brand: FRANKLIN ELECTRIC
• MPN: 553201
• SKU: 553201
• Horsepower: 1/18 HP
• Voltage: 115 VAC
• Frequency: 60 Hz
• Full Load Amps: 2.5 A
• Full Load Watts: 148 W
• Shutoff Head: 24 feet
• Flow Rate: 270 gph
• Inlet Diameter: 1-1/8 inches
• Outlet Diameter: 3/8 inch OD Barbed
• Max Pressure: 10.4 PSI
• Cord Length: 6 feet
• Continuous Duty: Yes
• Safety Switch: Yes
• Max Fluid Temperature: 120 °F
• Material: ABS
• Discharge Type: Barb
• Tubing Included: No
• Certifications: CSA
• UPC: 010121532014
• Country of Origin: United States
• Float Material: Polymer
• Reservoir Capacity: 1 gallon
• Series: VCL-24ULS
• Type: Automatic
