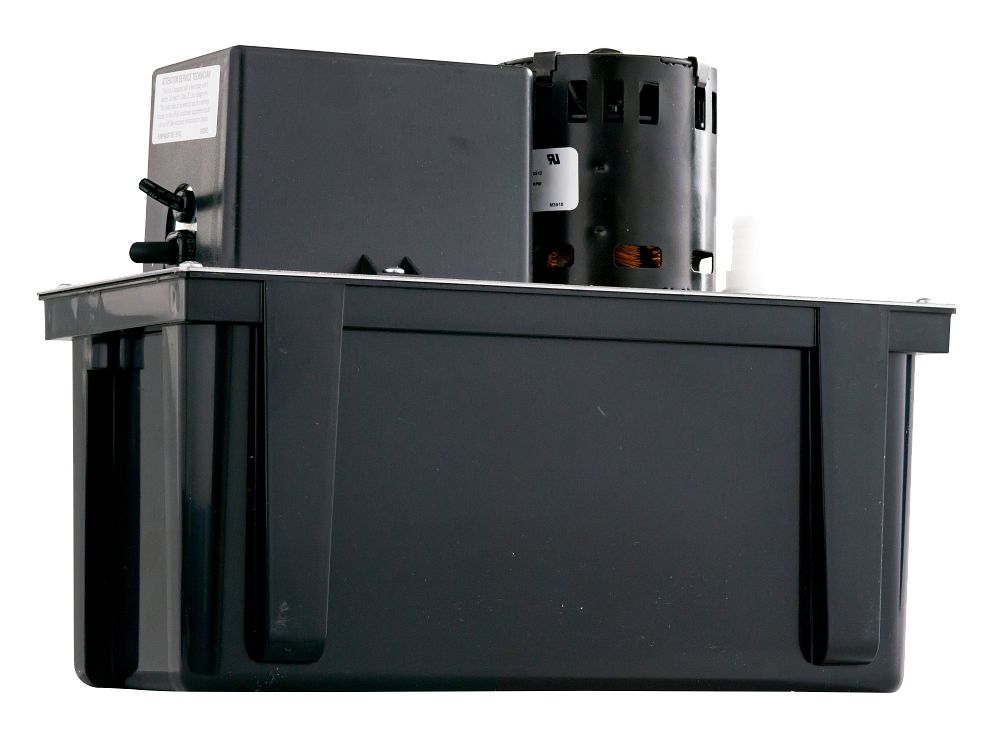

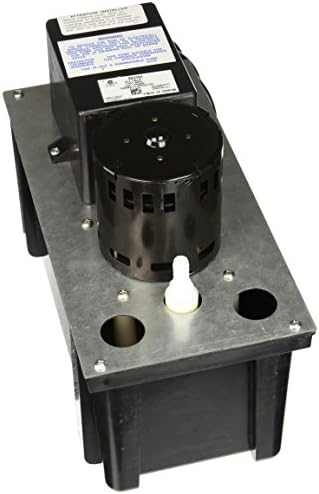

Franklin Electric 553101 VCL Large Tank Condensate Removal Pump 200 gph Flow Rate Large Tank

Product Description

The FRANKLIN ELECTRIC 553101 is a VCL Series large tank condensate removal pump. It is designed for HVAC systems, high-efficiency gas furnaces, condensing boilers, air conditioning, refrigeration, and dehumidification equipment. This 115 VAC pump offers a 200 gph flow rate and features a 1-gallon tank capacity, making it suitable for applications where gravity drainage is not feasible. It includes an automatic float/switch mechanism for operation.

• 1/50 hp motor with thermal overload protection.
• Features a galvanized steel tank cover and ABS tank construction.
• Includes a safety switch and 1 US gallon tank capacity.

Product Highlights

Automatic condensate removal for HVAC and high-efficiency systems.

Product Information

Standard Information

• Brand: FRANKLIN ELECTRIC
• Manufacturer Part Number: 553101

Technical Specifications

• Input Voltage: 115 VAC
• Flow Rate: 200 gph
• Series: VCL
• Tank Type: Large Tank
• Shut-off Head: 14' (4.3 m)
• Max Liquid Temperature: 120 °F (49 °C)
• Discharge Connection: 3/8" barbed (9.5 mm)
• Impeller Material: Glass-filled Polypropylene
• Frequency: 60 Hz
• Current: 1 A
• Operation: Automatic
• Model: VCL-14ULS
• Safety Switch Included: Yes
• Tubing Included: No
• Motor Horsepower: 1/50 hp
• Power Source: Corded Electric
• Wattage: 78 Watts
• Inlets: Two 1-1/8" diameter inlet openings
• Switch Operation: Vertical; on at 3.8"; off at 2.18"
• Overflow Switch: Dual fuction NO and NC operation (set to NO from factory)
• Performance at 1' Lift: 200 gph (758 lph)
• Performance at 3' Lift: 185 gph (701 lph)
• Performance at 5' Lift: 170 gph (644.3 lph)
• Performance at 10' Lift: 125 gph (473.8 lph)
• Max Pressure: 6.1 psi (0.42 bar)
• Cord Length: 6' (1.8 m)
• Tank Capacity: 1 US gallon (3.79 l)
• Housing Material: Acrylonitrile Butadiene Styrene (ABS)
• Motor Type: 1/50 hp, 115-volt, 60 Hz fan cooled, concentric, thermally protected motor; CSA listed in the USA and Canada
• Included Components: 3/8 inch bared discharge adapter and check valve, Condensate Removal Pump with Safety Switch, installation manual
