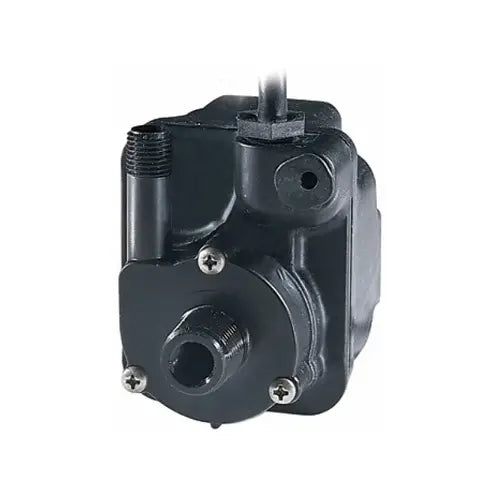

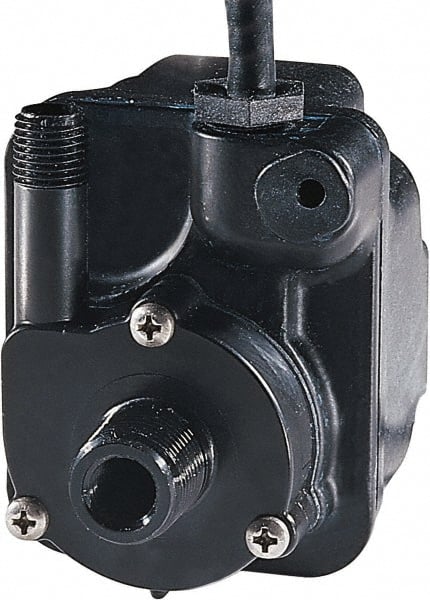

Franklin Electric 518087 potted pump 115V 170 GPH 10 feet cord .25in MPT

Product Description

The Franklin Electric 518087 is a 115V potted pump designed for various liquid transfer and recirculation applications. This compact pump delivers a flow rate of 170 GPH and features a 10-foot cord with a .25 inch MPT connection. It is suitable for both submersible and in-line use, making it versatile for commercial, industrial, and home settings. The pump operates at 60 Hz with a 1/125 HP motor and 0.6 A amperage.

• 170 GPH flow rate and 115V operation for efficient liquid transfer.
• Potted pump design with a 10-foot power cord and .25 inch MPT connection.
• Features a 1/125 HP motor, 0.6 A amperage, and impedance protection.

Product Highlights

This dual-purpose epoxy encapsulated pump is ideal for statuary fountains, water displays, and air conditioners, offering reliable performance with a 7 ft shut-off.

Product Information

Standard Information

• Brand: FRANKLIN ELECTRIC
• Manufacturer Part Number: 518087

Technical Specifications

• Flow Rate: 170 GPH
• Input Voltage: 115V
• Cord Length: 10 ft
• Pump Type: Potted
• Model Number: 1EA42
• Sub-Brand: Little Giant
• Housing Material: Glass-Filled Polyester
• Cover Material: Epoxy-Coated Cast Aluminum
• Volute Material: Nylon
• Impeller Material: Nylon
• Shaft Seal Material: Viton
• Motor Protection: Impedance
• Amperage: 0.6 A
• Frequency: 60 Hz
• Horsepower: 1/125 HP
• Power Consumption: 36 W
• Pressure: 3 psi
• Shut-Off Head: 7 ft
• Maximum Liquid Temperature: 120 deg F
• Intake Connection: 1/2 Inch MNPT and 1/4 Inch FNPT
• Discharge Connection: 1/4 Inch MNPT
• Motor Type: Epoxy Encapsulated, Direct Drive
• Thermal Overload Protection: Yes
• Phase: Single
• Standards: CCSAUS
