FRANKLIN ELECTRIC 509081 WCR-9SP 0.4 hp

Product Description

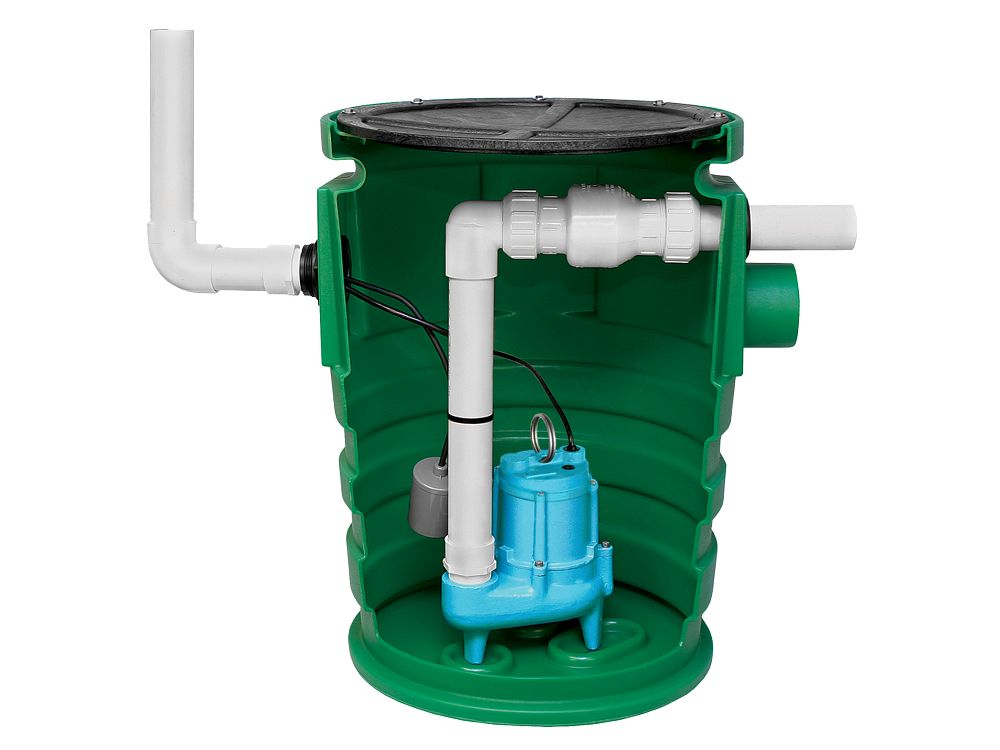

The FRANKLIN ELECTRIC 509081 WCR-9SP is designed to manage liquid and semi-solid waste materials. This unit is suitable for wastewater collection and removal, working effectively with materials up to two inches in diameter. It features a robust basin that is twenty inches by thirty inches, constructed from polyethylene for added durability.

• Handles waste material up to 2-inch spherical diameter
• Includes a strong polyethylene basin with ribs
• Comes with a piggyback mechanical float switch

Product Highlights

The FRANKLIN ELECTRIC WCR-9SP is ideal for applications involving sewage, effluent, drainage, or seeping water. The pre-packaged basin is ready for installation.

Product Information

Standard Information

• MPN: 509081
• Brand: Franklin Electric

Technical Specifications

• Model: WCR-9SP
• Horsepower: 0.4 hp
• Frequency: 60 Hz
• Phase: Single-Phase
• Full Load Amps: 8 A
• Starting Amps: 20.15 A
• Full Load Watts: 870 W
• Volts: 115 VAC
• Cord Length: 20 ft
• Pump Power Cord Type: SJTW
• Pump Power Cord Gauge: 18-3
• Motor Type: Submersible
• Continuous Duty: Yes
• Thermal Overload Protection: Yes
• Max Flow Rate: 100 gpm / 6000 gph
• Shut-Off Height: 20 ft
• Shut Off Height - 60Hz: 30 ft
• Max Solid Handling Size: 2 inches
• Switch Type: Piggyback Mechanical Float
• Motor Cooling: Oil
• Max Fluid Temperature: 140 °F
• Pump Base Material: Cast Iron
• Pump Body Material: Cast Iron
• Pump Volute Material: Cast Iron
• Impeller Type: Vortex
• Impeller Material: Nylon
• Motor Shaft Material: 420 Stainless Steel
• Fasteners Material: Stainless Steel
• Top Bearing Material: Steel
• Top Bearing Type: Ball
• Seal Material: Carbon/Ceramic, Nitrile
• Seal Type: Mechanical Seal
• Discharge Type: Threaded - FNPT
• Discharge Size: 2 inches
• Product Length: 22 inches
• Product Width: 22 inches
• Product Height: 30 inches
• Product Weight: 66.8 lb
• Carton Length: 22 inches
• Carton Width: 22 inches
• Carton Height: 30 inches
• Off Level Range: 2 inches - 6 inches
• On Level Range: 9 inches - 14 inches
• Accessories Included: Pre-Packaged polyethylene basin with assembly. This includes a structural foam cover, a 2 inch discharge, and a piggyback mechanical float switch.
• Pump Component Part Number: 509412
• Standard Warranty: 36 Months Purchase / 36 Months Manufacturing
• Basin Size: 20 inches x 30 inches
• Basin Material: Roto-molded polyethylene
• Cover Material: Structural foam or steel
