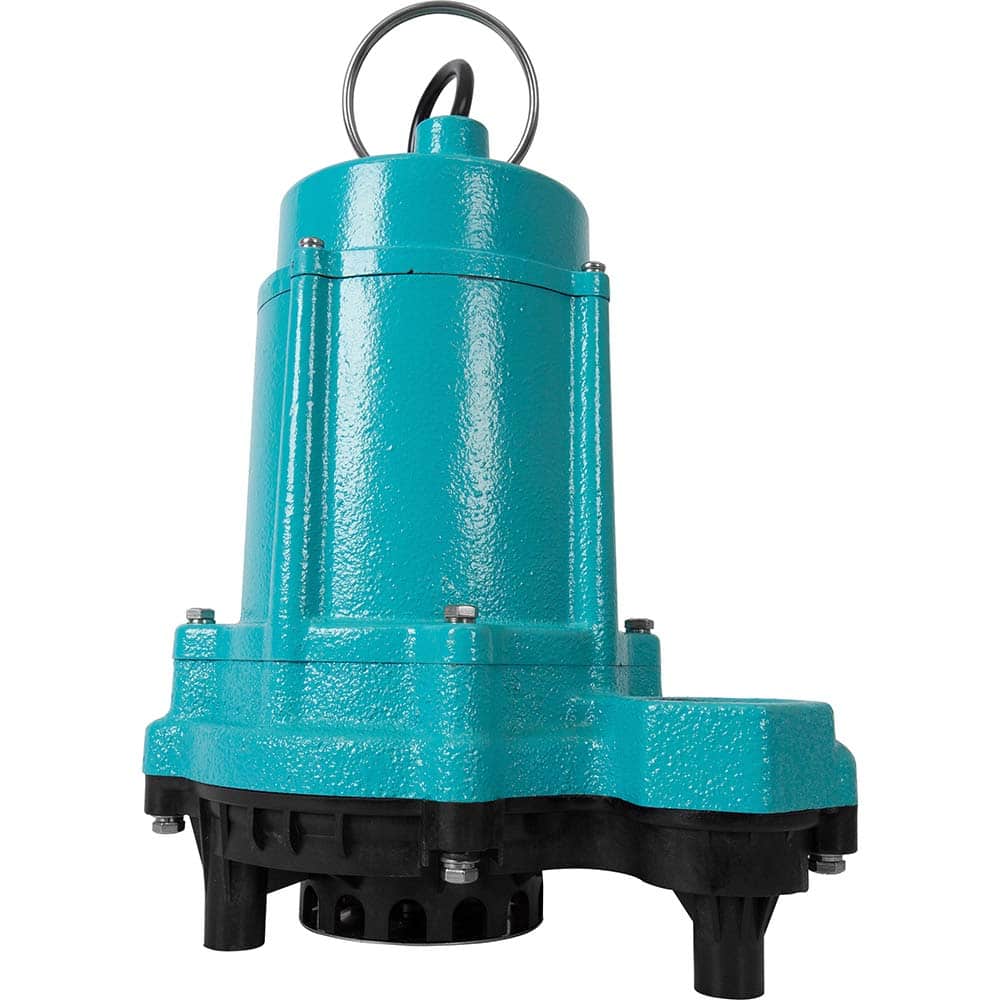

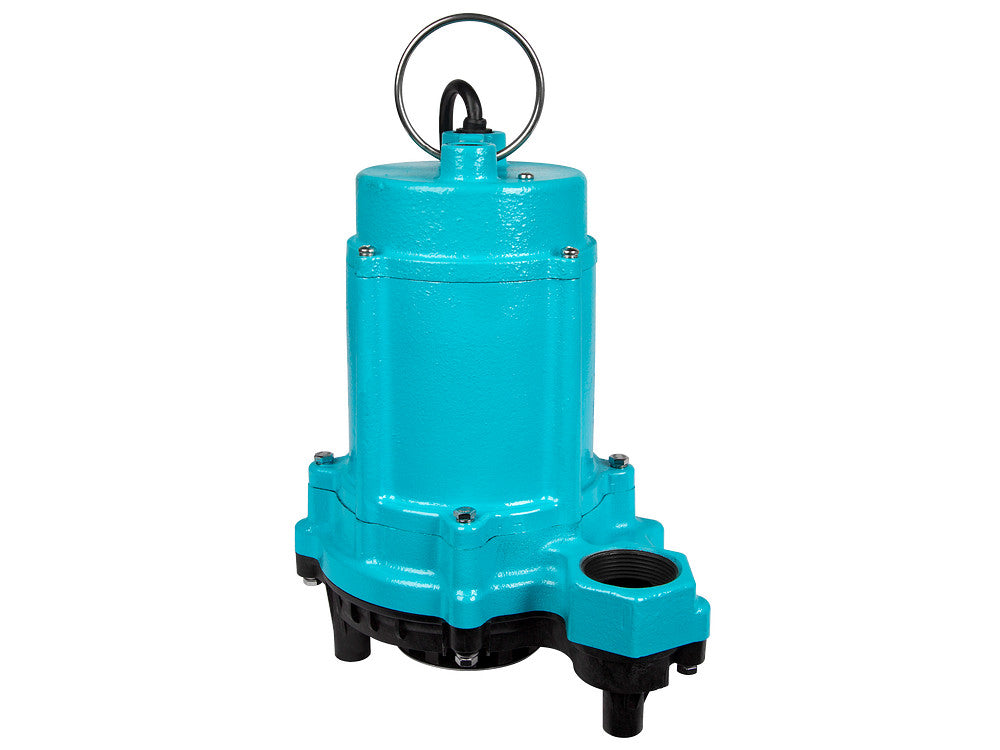

Franklin Electric 506802 Little Giant 6EC Submersible Sump Pump

Product Description

The Franklin Electric 506802 Little Giant 6EC is a reliable submersible sump pump ideal for managing unwanted water in basements or crawlspaces. With a 1/3 horsepower permanent split capacitor motor, it operates at 115 volts and draws five amps at 60 Hz. This pump achieves a maximum flow rate of fifty-three gallons per minute at five feet of head, making it effective for residential drainage.

• Submersible design built for manual operation.
• Handles solids up to 0.5 inches in size.
• Includes a twenty-foot SJTW power cord.

Product Highlights

The pump features a robust construction with a cast iron body, polypropylene volute, and a nylon impeller. It offers thermal overload protection for enhanced safety during operation.

Product Information

Standard Information

• Brand: Franklin Electric
• MPN: 506802

Technical Specifications

• Motor Horsepower Rating - 60Hz: 1/3 hp
• Frequency: 60 Hz
• Amps - Full Load: 5 A
• Max Flow Rate: 53 gpm / 3180 gph
• Shut-Off: 28 ft
• Maximum Fluid Temperature: 140 °F
• Pump Dimensions: 8.79 in L x 8.48 in W x 11.08 in H
• Weight: 32.5 lb
