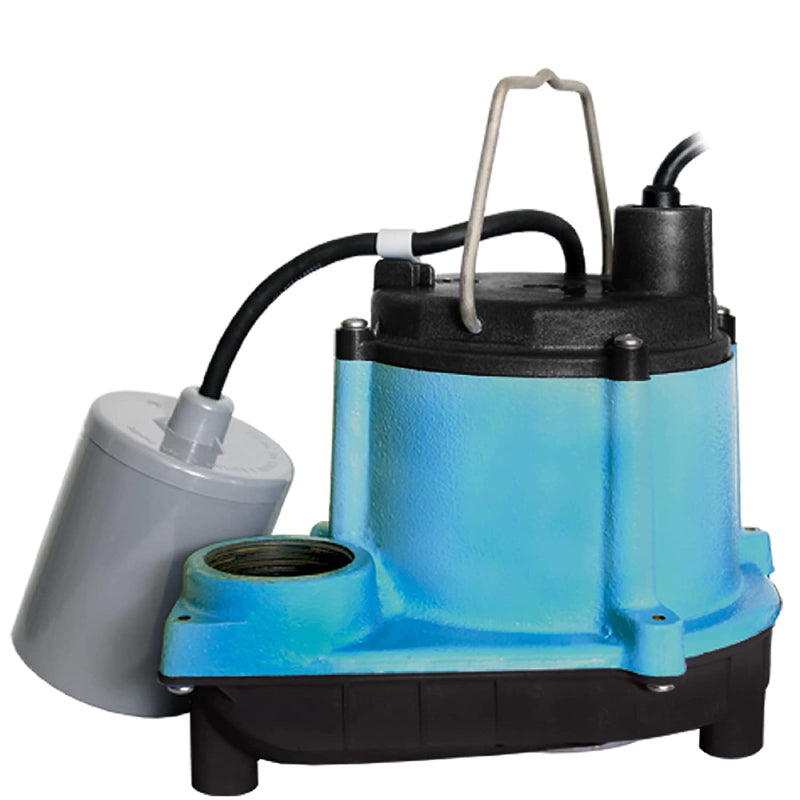

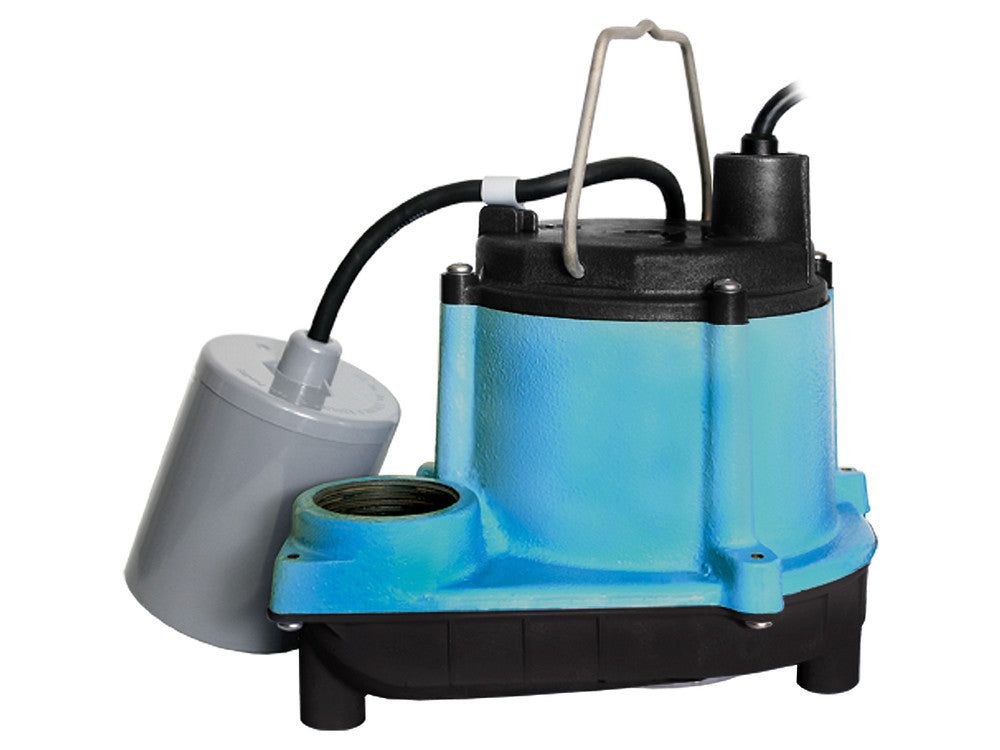

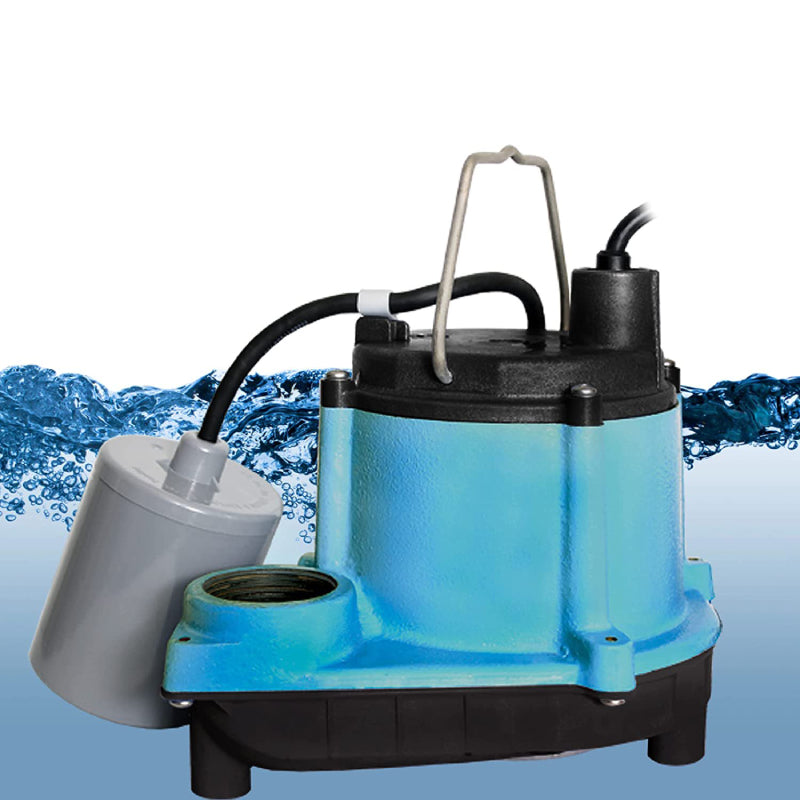

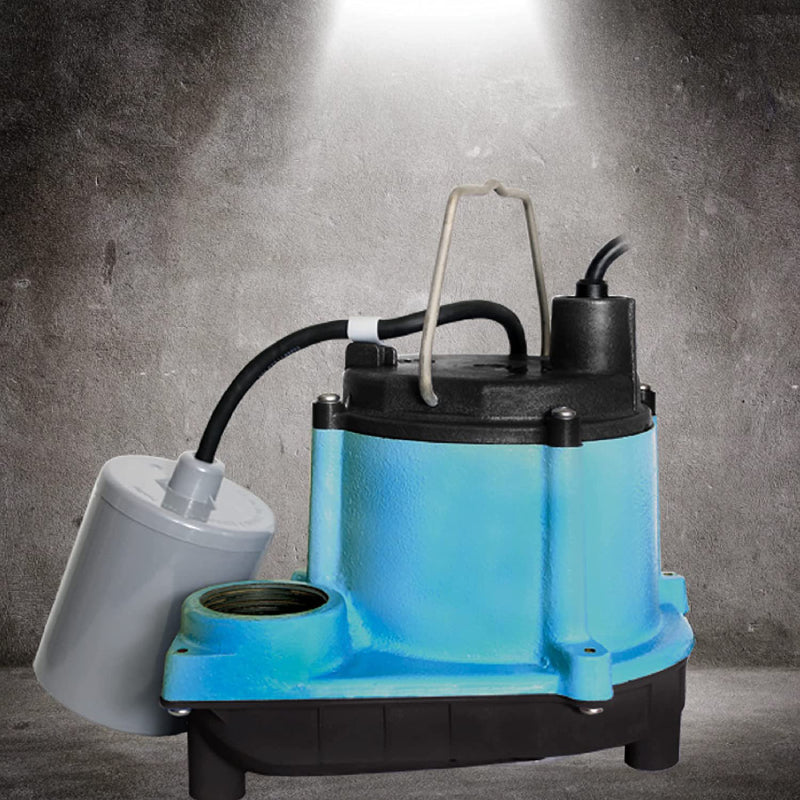

Franklin Electric 506171 1/3 HP Sump Pump

Product Description

The Franklin Electric 506171 is a reliable submersible sump pump designed for various applications such as water transfer, residential pools, and basement drainage. This product features an epoxy-coated cast iron housing and a non-clog vortex impeller for effective water movement. The included piggyback mechanical float switch allows for automatic operation when water levels rise and can also be switched to manual operation.

• 1/3 HP motor delivers flow rates up to 46 GPM.
• Equipped with automatic activation between 9.5 to 11 inches and deactivation from 3 to 5 inches.
• Durable construction with maximum flow rates and overload protection.

Product Highlights

This submersible sump pump is ideal for homes, enabling efficient water removal to protect basements and other areas from flooding.

Product Information

Standard Information

• Brand: Franklin Electric
• Model Number: 506171

Technical Specifications

• Voltage: 115V
• Flow Rate: Up to 46 GPM
• Horsepower: 1/3 HP
• Amps: 9 A (Full Load), 14.3 A (Starting)
• Frequency: 50/60 Hz
• Cord Length: 10 ft
• Max Head: 18 ft
• Shut Off Height: 13 ft (50 Hz)
• Product Dimensions: 9.5 L x 7.5 W x 6 H inches
• Weight: 16.75 lbs
• Seal Material: Carbon/Ceramic, Nitrile
• Protection Rating: IP68
