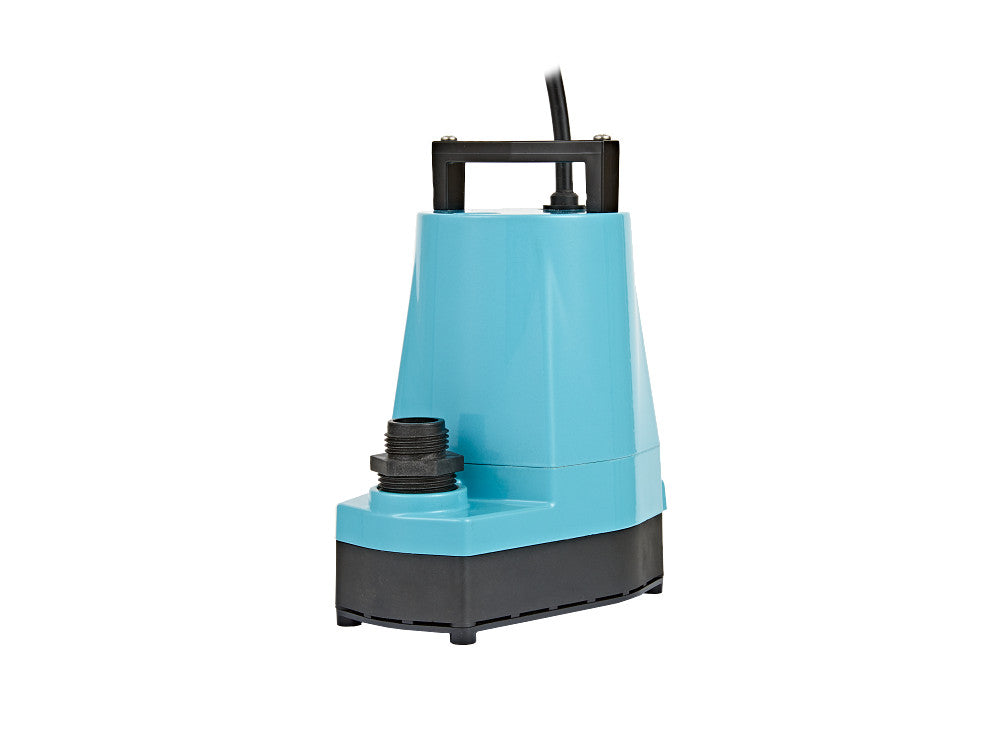

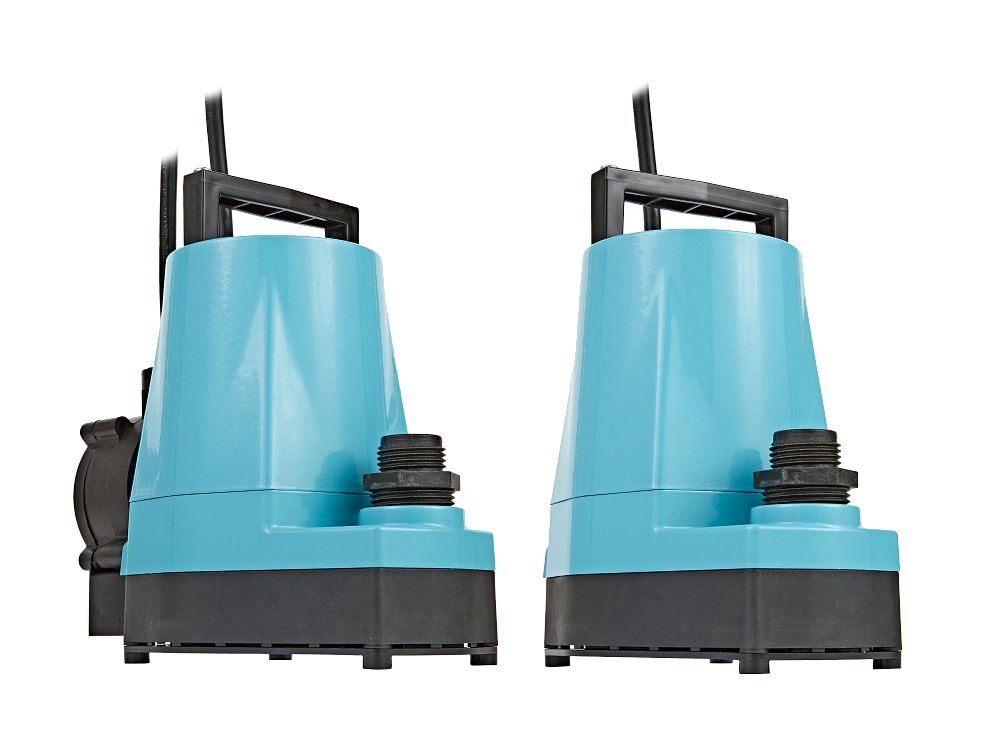

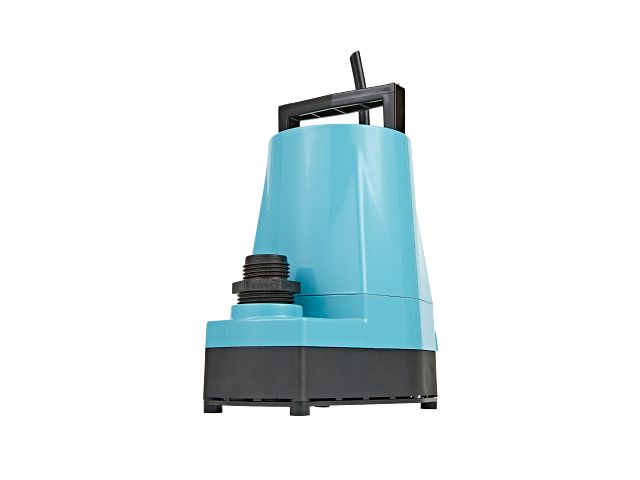

Franklin Electric 505721 Little Giant 5-MSP Submersible Utility Pump

Product Description

The Franklin Electric 505721 Little Giant 5-MSP is a submersible utility pump suitable for water removal, transfer, and circulation for home and light business use. This pump has a one-sixth horsepower oil-free PSC motor and a strong epoxy-coated cast aluminum housing, allowing for efficient heat dissipation. It can achieve a maximum flow rate of fifteen hundred gallons per hour.

• Features a one-sixth horsepower oil-free PSC motor.
• Maximum flow rate of fifteen hundred gallons per hour.
• Includes a removable screen for easy cleaning and maintenance.

Product Highlights

This pump provides thermal overload protection and is rated IP68 for durability and safety. Its low pump down capability ensures efficient cleanup with less time spent managing moisture.

Product Information

Standard Information

• Brand: Franklin Electric
• MPN: 505721

Technical Specifications

• Frequency: 60 Hz
• Phase: Single-Phase
• Full Load Amps: 2 A
• Starting Amps: 3 A
• Full Load Watts: 220 W
• Voltage: 127 VAC
• Cord Length: 18 ft
• Motor Type: Submersible
• Thermal Overload Protection: Yes
• IP Rating: IP68
• Maximum Flow Rate: 25 gpm / 1500 gph
• Minimum Flow Rate: 4.17 gpm / 250 gph
• Shut-Off Height: 26.3 ft
• Minimum Head: 1.31 ft
• Stages: 1
• Max Solid Handling Size: 0.13 inches
• Switch Type: Manual
• Max Fluid Temperature: 120 °F
• Pump Base Material: Plastic
• Pump Body Material: Aluminum
• Pump Volute Material: Nylon
• Impeller Material: Nylon
• Motor Shaft Material: Stainless Steel
• Pump Length: 6.1 inches
• Pump Width: 4.13 inches
• Pump Height: 7.78 inches
• Product Weight: 6.75 lb
• Product Weight with Pack: 7.3 lb
• Carton Dimensions: 7.28 x 5.51 x 9.45 inches
