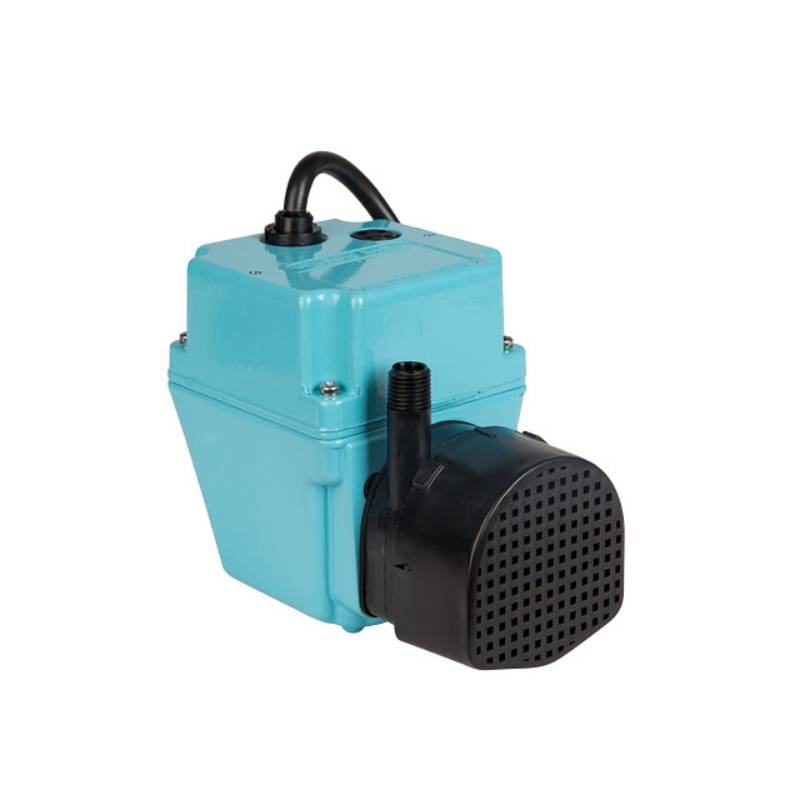

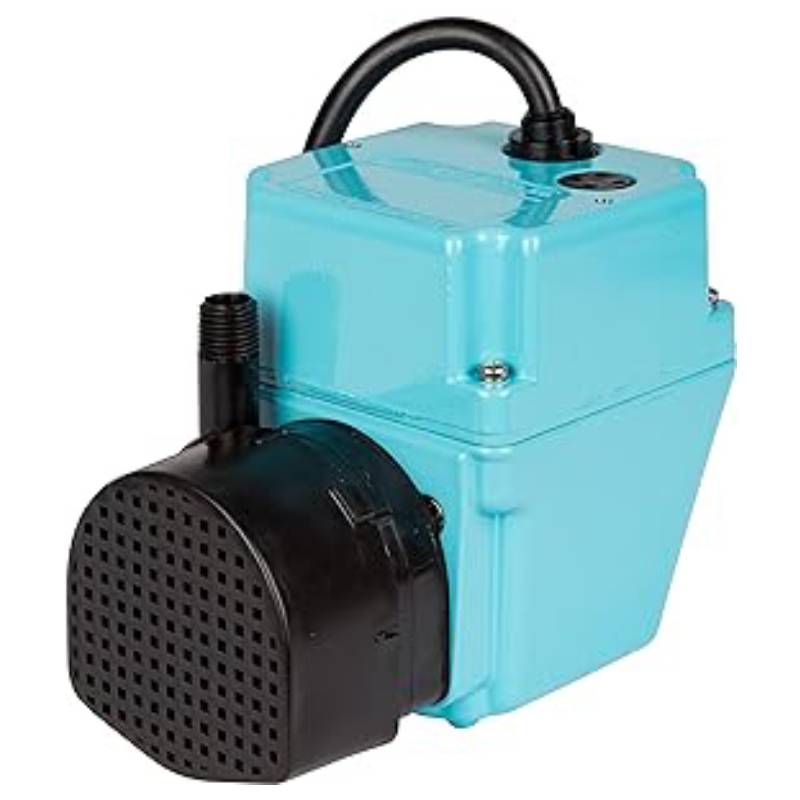

Franklin Electric 502103 Little Giant 2E-N Submersible Pump

Product Description

The Franklin Electric 502103 is a Little Giant 2E-N series submersible pump. This pump is ideal for commercial, industrial, and residential applications. It is used for water transfer, recirculation, and air conditioning systems.

• Features an epoxy-coated aluminum housing and nylon volute.
• Operates using a 115V power supply with a six-foot power cord.
• Equipped with a 1/4 MNPT outlet and thermal overload protection.

Product Highlights

This pump provides reliable performance with its durable construction and various applications.

Product Information

Standard Information

• Brand: Franklin Electric
• Model Number: 502103

Technical Specifications

• Voltage: 115V
• Horsepower: 1/40 hp
• Frequency: 60 Hz
• Amps: 1.7 A
• Full Load Watts: 100 W
• Cord Length: 6 ft
• Maximum Flow Rate: 5 gpm / 300 gph
• Shut-Off: 11.8 ft
• Maximum Pressure: 5.1 PSI
• Maximum Fluid Temperature: 120 °F
• Pump Volute Material: Nylon
• Impeller Material: Nylon
• Intake Screen Material: Polypropylene
• Seal Material: Nitrile Rubber
• Discharge Type: Threaded - MNPT
• Product Length: 6 inches
• Product Width: 4 inches
• Product Height: 5 inches
• Product Weight: 5 lb
• Carton Length: 7 inches
• Carton Width: 7 inches
• Carton Height: 5 inches
• Electrical Agency Approvals: UL
• Standard Warranty: 12 Months
• Outlet Size: 1/4 in MNPT
• Series: 2E-N
• Temperature Rating: 120 °F
• Type: Small Direct Drive Oil Filled
• Material: Epoxy Coated Die Cast Aluminum
