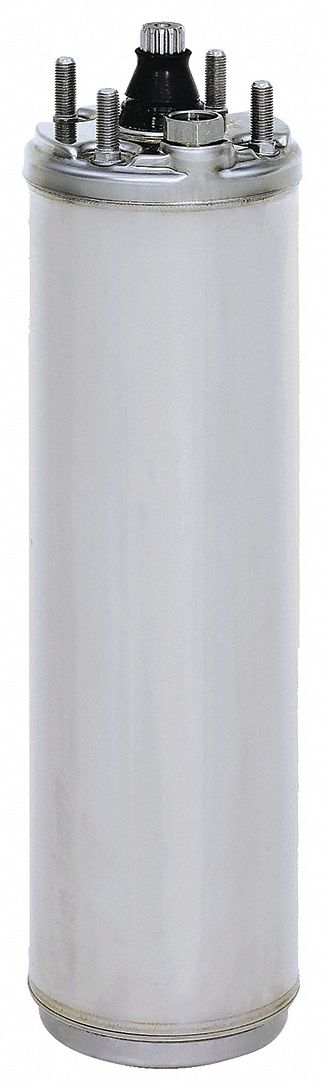

Franklin Electric 2243009203S Deep Well Submersible Pump Motor 1-1/2 HP Capacitor-Start

Product Description

The Franklin Electric 2243009203S is a 1-1/2 HP motor specifically designed for deep well submersible pump applications. This motor operates at 230 volts, features a capacitor-start design, and runs at a nameplate RPM of 3450. Its totally enclosed non-ventilated enclosure ensures durability and protection from the environment.

• Capacitor-start motor for reliable operation
• Thermal protection for enhanced safety
• Constructed with corrosion-resistant materials for longevity

Product Highlights

This deep well submersible pump motor is ideal for various water well applications.

Product Information

Standard Information

• Item: Deep Well Submersible Pump Motor
• HP: 1-1/2

Technical Specifications

• Motor Application: Pumps
• Motor Type: Capacitor-Start
• Enclosure: Totally Enclosed Nonventilated
• Nameplate RPM: 3450
• Voltage: 230
• Phase: 1
• Full Load Amps: 10.0
• Max. SF Amps: 11.5
• Hz: 60
• Service Factor: 1.3
• Max. Ambient Temp: 86 Degrees F
• Thrust Rating: 650 lb.
• Number of Wires: 3
• Thermal Protection: Manual
• Rotation: CCWSE
• Dia: 4 inches
• Diaphragm Type: Pressure Equalizing
• Shaft Material: Splined Stainless Steel
• Shell Material: Corrosion Resistant Stainless Steel
• Stator Type: Hermetically Sealed
• Lead Length: 48 inches
• Height: 13-5/8 inches
• RPM Range: 3001-3600
