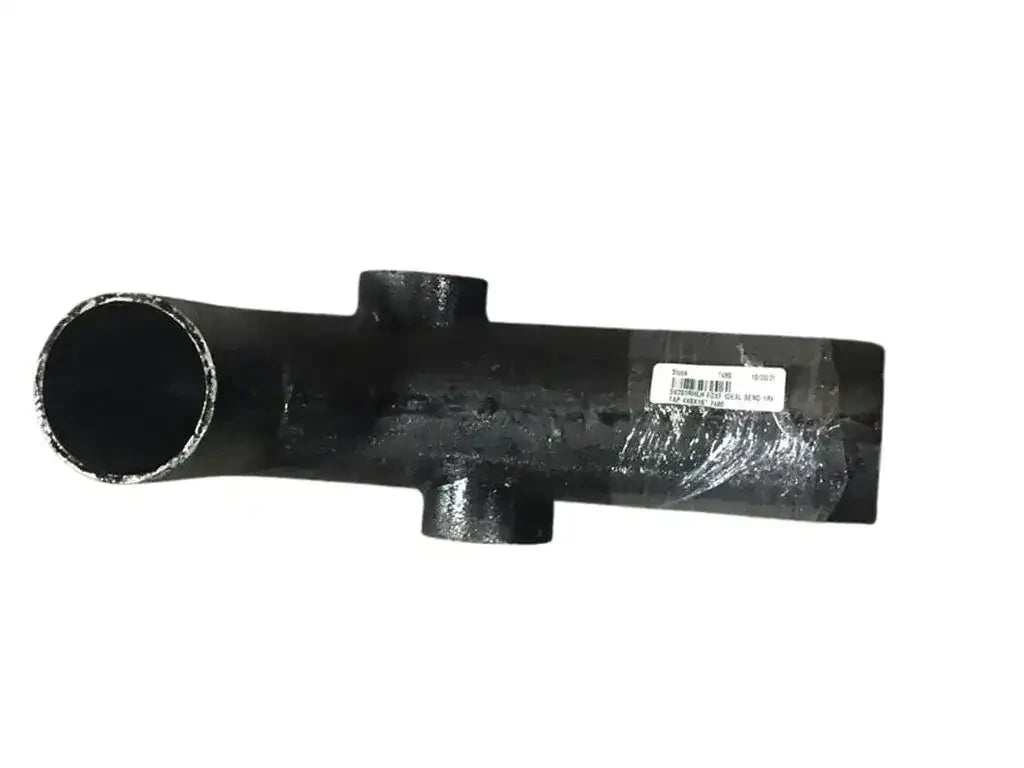

Fox Foundry sv201rhlh Cast Iron Ideal Bend 4x6x16 in

Product Description

The FOX FOUNDRY sv201rhlh is a cast iron ideal bend fitting designed for drain, waste, and vent (DWV) piping systems. This fitting combines a right-hand and left-hand configuration with a 1-1/2 inch tap, making it suited for complex branch connections where directional flow management is required. Measuring 4 inches by 6 inches by 16 inches, it provides the structural durability and flow characteristics that cast iron drainage systems demand. Licensed plumbers and journeyman pipefitters typically specify this type of fitting in commercial and multi-family residential applications where noise attenuation and long service life are priorities.

This fitting is used in above-ground and below-ground cast iron DWV assemblies where an ideal bend profile is required to transition flow direction with minimal turbulence. The combined RH/LH outlet configuration allows a single fitting to serve branching lines from opposing sides, reducing the number of joints in the assembly. The 1-1/2 inch tap accommodates a secondary drain connection commonly used for floor drains, fixture branches, or cleanout tie-ins in commercial plumbing rough-in work.

Key Features

• Cast iron construction for durability and sound dampening in DWV systems
• Ideal bend profile minimizes flow turbulence at direction changes
• Combined 1 RH and 1 LH outlet configuration for dual-direction branching
• 1-1/2 inch tap included for secondary fixture or drain connections
• Dimensions of 4 x 6 x 16 inches suit standard commercial rough-in layouts

Compatibility

Designed as an OEM-style cast iron fitting for use in standard DWV piping systems where ideal bend fittings and hub-and-spigot or no-hub connections are specified per local plumbing code.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable International Plumbing Code (IPC) or local authority having jurisdiction. Shut off all water supply and verify the line is depressurized and drained before cutting into an existing DWV stack or branch. Cast iron fittings of this type are typically joined using no-hub couplings with stainless banding or lead-and-oakum hub joints depending on system specification. Support the fitting adequately per code-required hanger spacing for cast iron pipe.
