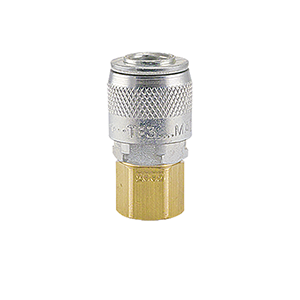

Foster TF4404 TF4 & J Series 3/8 inches Automatic Socket 1/2 inches FPT

Product Description

The Foster TF4404 TF Series 3/8" x 1/4" I.D. Steel Hose Stem Automatic Socket Couplers (pneumatic) connect with Tru-Flate design, commonly called the automotive interchange. They have manual sleeves and are single shut off quick couplings. The steel tubular valve delivers high air flow with minimal pressure drop.

• Developed for the automotive industry
• High flow valves with minimal pressure drop
• Integral Sleeve guard helps prevent accidental disconnect

Product Highlights

This quick disconnect is designed for the automotive industry and features high flow valves with minimal pressure drop. It has an integral sleeve guard to help prevent accidental disconnect.

Product Information

Standard Information

• Brand: FOSTER
• Manufacturer Part Number: TF4404

Technical Specifications

• Type: One-Way Shut-Off
• Rated Pressure: 300 psig
• Operation: Automatic - Push to connect, retract socket sleeve to disconnect
• Sizes: 1/4", 3/8", (For 1/2" use Industrial Interchange product)
• Series: TF4 Series
• Shape (Orientation): Straight
• Ends Configuration: 3/8in Female Tru-Flate QD Interchange, 1/2in Female NPT
• Material(s): Brass, Steel
• Interchange: Interchange with Tru-Flate
• Brand: FOSTER MFG CO INC
• Connection Size: 1/2" NPT Female
• Body Size: 3/8"
