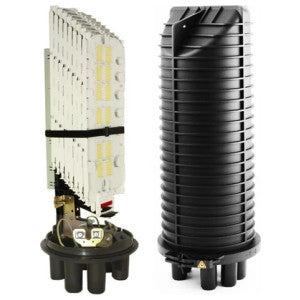

FOSC FOSC400-D5-72-1-BGV Fiber Optic Splice Closure Polymer Black O-Ring Sealed Dome 576 Single Fusion 6 Ports

Product Description

The FOSC400-D5-72-1-BGV is a fiber optic splice closure from FOSC and is manufactured by CommScope. This closure is designed for splicing feeder and distribution cables. It features a black O-ring sealed dome and is compatible with several common cable types, including loose tube and ribbon fiber. The closure is equipped with a pre-installed seventy-two splice tray, allowing for efficient and secure cable connections.

• O-ring sealed design protects against environmental factors.
• Accommodates mass fusion and single fusion splicing.
• Includes cable blocking components for improved organization.

Product Highlights

This product is ideal for outdoor installations and is rated for below-ground use. It meets IEC qualification standards for durability and water resistance, ensuring reliable performance.

Product Information

Standard Information

• Brand: FOSC
• Manufacturer: CommScope

Technical Specifications

• Supported Splicing: Mass fusion, single fusion
• Maximum Mass Fusion Splicing Capacity: 1152 fibers
• Color: Black
• Splice Tray Included: Seventy-two-way, heat shrink
• Maximum Single Fusion Splice Capacity: 576 fibers
• Maximum Main Cable Diameter: 0.98 inches
• Overall Diameter: 9.45 inches
• Length: 27.95 inches
• Environmental Space: Below ground, buried
• Water Resistance: Flash test valve at 5 psi (40 kPa)
