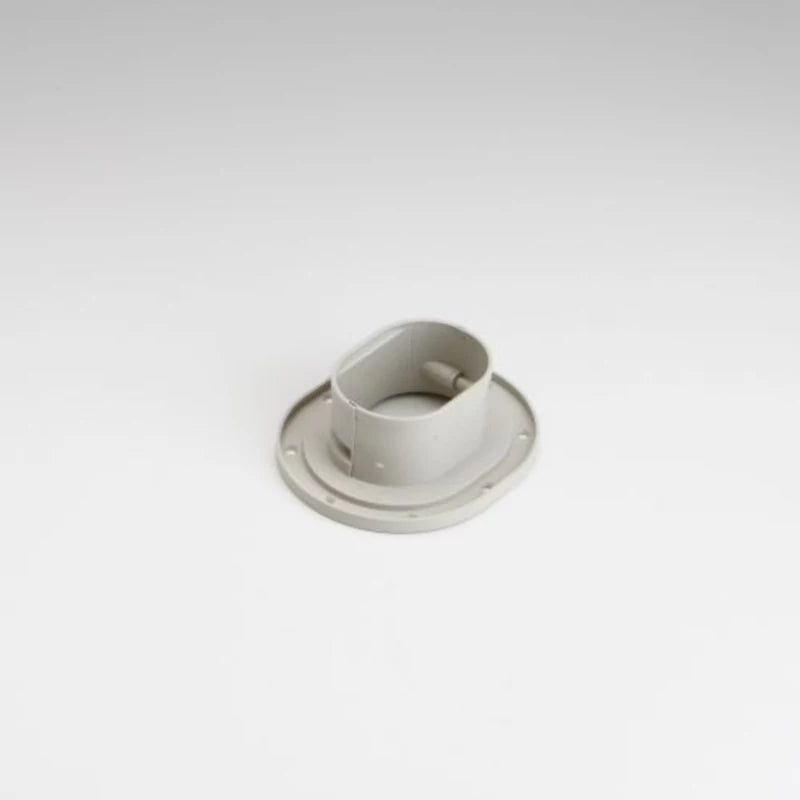

Fortress 84037 LWF92I 3.5 Inches Lineset Wall Flange Ivory

Product Description

The Fortress 84037 LWF92I is a 3.5 inch lineset wall flange in Ivory finish, designed to provide a clean, professional transition point where HVAC linesets, refrigerant lines, electrical cables, or drain pipes pass through a wall surface. This injection molded Polypropylene and PVC fitting is a key component of the Fortress prefabricated duct and fitting system, which conceals and protects exposed refrigeration linesets, electrical wiring, and water or drain piping in both residential and commercial HVAC installations. HVAC technicians, installers, and contractors rely on wall flanges like the 84037 to create a finished, code-compliant appearance at lineset penetration points, eliminating exposed gaps that collect debris and moisture. The Fortress system is precision engineered from UV-stabilized Polypropylene and extruded PVC, meeting the requirements of the UL-94V-0 flammability specification. Components are rated for temperatures from -4 to 140 degrees Fahrenheit, making them suitable for year-round outdoor and indoor use in a wide range of climate conditions. The split construction of Fortress fittings is a standout feature for retrofit and new construction work alike. Because each component splits apart, installers can fit the flange around an existing lineset without disconnecting or cutting lines, saving significant time on the job. The Ivory color is one of four standard Fortress colors, including White, Brown, and Gray, chosen to coordinate with common building exterior and interior color schemes. No painting is needed. Internal fixings are incorporated directly into the design, so external mounting brackets are not required. The 84037 wall flange measures 5 inches by 6 inches by approximately 2.125 inches and weighs 0.5 pounds. It ships as a single unit and is manufactured in the USA. This fitting pairs with Fortress lineset cover duct, inside and outside corners, and other system components for a complete, professional lineset cover installation.

• Split design allows installation over existing linesets without disconnecting refrigerant lines or wiring
• Made from UV-stabilized Polypropylene and PVC, rated for temperatures from -4 to 140 degrees Fahrenheit and meets UL-94V-0 specifications
• Ivory finish matches common building color schemes and requires no painting, with internal fixings that eliminate the need for external mounting brackets

Product Highlights

The Fortress 84037 LWF92I wall flange delivers a clean, finished lineset penetration point for HVAC and refrigeration installations. Its split construction, UV-resistant materials, and no-paint Ivory finish make it a practical choice for both new construction and retrofit applications.

Product Information

Standard Information

• Brand: FORTRESS
• Manufacturer Part Number: 84037

Technical Specifications

• Model: LWF92I
• Type: Wall Flange
• Size: 3.5 inches
• Color: Ivory
• Length: 6 inches
• Width: 2.25 inches
• Height: 5 inches
• Weight: 0.5 pounds
• Composition: UV Polypropylene PVC
• Temperature Rating: -4 to 140 degrees Fahrenheit
• Flammability Rating: UL-94V-0
• Country of Origin: USA
• UPC: 021449840378
• Unit of Measure: Each
