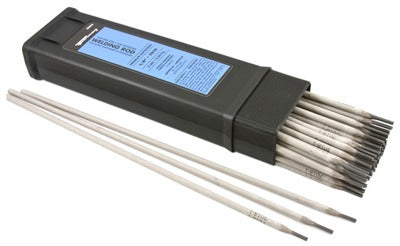

Forney Industries 30705 7018 Welding Rod 3/32 in 5 Lb

Product Description

The Forney Industries 30705 is a 7018 low-hydrogen stick welding electrode packaged in a 5-pound unit. The 3/32-inch diameter makes it well-suited for welding in tight joints and on thinner base metals where heat input needs to be controlled. The 7018 classification indicates a low-hydrogen, iron-powder coating that produces a smooth, strong weld bead with excellent ductility. This electrode is commonly used by structural welders, pipe fitters, maintenance welders, and fabricators working with mild and low-alloy steels.

The 7018 electrode is a workhorse rod in both shop and field environments. It performs in flat, horizontal, vertical, and overhead positions, making it versatile across a wide range of structural and fabrication applications. Common uses include structural steel erection, pressure vessel repair, heavy equipment maintenance, and general-purpose fabrication. The 3/32-inch diameter is particularly practical for root passes, sheet metal work, and applications where precise arc control is needed.

Key Features

• 7018 low-hydrogen, iron-powder coating for clean, ductile welds
• 3/32-inch diameter suited for controlled heat input on thinner materials and tight joints
• 5-pound package quantity supports extended production runs and shop stock
• Compatible with AC and DC welding power sources
• All-position welding capability including flat, horizontal, vertical, and overhead

Compatibility

Designed as a standard 7018 low-hydrogen stick electrode for use with AC or DC constant-current welding machines capable of operating in the amperage range appropriate for 3/32-inch electrodes.

Installation Notes

7018 electrodes are installed by licensed welders and qualified welding personnel following applicable codes such as AWS D1.1 for structural steel. Low-hydrogen electrodes must be stored in a dry environment and, when moisture exposure is suspected, re-dried in a rod oven prior to use to prevent porosity and hydrogen-induced cracking. Always verify machine polarity and amperage settings before striking an arc, and allow the electrode and base metal to reach stable operating conditions before beginning a critical weld pass.
