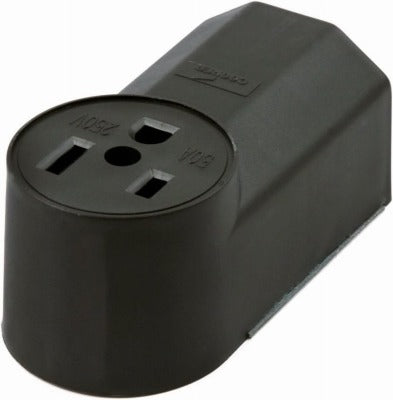

Forney 58402 Nema 6-50 Pin-type Wall Receptacle 50 Amp

Product Description

The FORNEY INDUSTRIES INC 58402 is a heavy-duty bakelite pin-type wall electrical receptacle rated at 50 amps and 125/250 volts, conforming to the NEMA 6-50 configuration. Built for surface mounting, it features a 2-pole, 3-wire grounding design that meets the demands of high-amperage applications such as welding equipment hookups. The bakelite construction provides solid dielectric properties and durability in shop and industrial environments. Electricians and maintenance professionals install this receptacle where a dedicated 50-amp, 240-volt circuit is required for welder power connections or similarly rated equipment.

This receptacle is commonly used in residential garages, commercial shops, and light industrial facilities where MIG or stick welders require a dedicated 50-amp outlet. The NEMA 6-50 configuration is the standard outlet type for 240-volt welding machines without a neutral conductor. Surface-mount installation makes it suitable for exposed conduit runs on masonry, metal, or wood substrates. It is sold in a package quantity of 6 units, making it a practical choice for contractors outfitting multiple welding stations or service bays.

Key Features

• NEMA 6-50 configuration rated for 50 amps at 125/250 volts
• Heavy-duty bakelite body for durability in shop and industrial environments
• 2-pole, 3-wire grounding design for safe high-amperage connections
• Pin-type contact design for secure, low-resistance plug engagement
• Surface-mount configuration compatible with standard electrical boxes and exposed conduit installations
• Packaged in quantities of 6 for multi-outlet installations

Compatibility

Designed as an OEM-style replacement or new-installation receptacle for NEMA 6-50 applications, including dedicated circuits for welding machines and other 240-volt, 50-amp equipment requiring a 2-pole, 3-wire grounding outlet.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always de-energize the circuit at the breaker panel and verify the absence of voltage with a meter before beginning work. The NEMA 6-50 receptacle requires a dedicated 50-amp, 240-volt 2-pole circuit breaker and appropriately sized conductors per NEC ampacity tables. Do not connect a neutral conductor to this outlet, as the NEMA 6-50 configuration uses two hot legs and a ground only.
