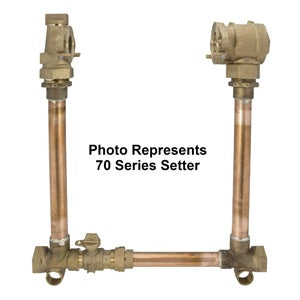

Ford Meter Box vhh77-21-11-77-nl 2 in Copper Setter No Lead

Product Description

The FORD METER BOX vhh77-21-11-77-nl is a 2-inch flanged meter copper setter designed for potable water metering installations. This no-lead unit integrates a 2-inch key valve with a 2-inch dual check valve in a single assembly, standing 21 inches high with horizontal inlet and horizontal outlet orientations. Connections are 2-inch female iron pipe (FIP) on both the inlet and outlet sides. The no-lead construction meets regulatory requirements for components used in drinking water systems. Installation is performed by licensed plumbers working on water service and metering applications.

This copper setter is intended for residential and light commercial water metering setups where a flanged meter interface is required. The horizontal inlet and horizontal outlet configuration suits standard meter pit or vault installations. The integrated dual check valve provides backflow protection, and the key valve allows service shutoff without additional inline valves. This assembly is appropriate for new construction and replacement metering service applications.

Key Features

• No-lead construction compliant with drinking water installation requirements
• Integrated 2-inch key valve for inline service shutoff
• Integrated 2-inch dual check valve for backflow protection
• 21-inch height with horizontal inlet and horizontal outlet orientation
• 2-inch FIP inlet and 2-inch FIP outlet connections
• Flanged meter interface for direct meter coupling

Compatibility

Designed as an OEM-style replacement or new-installation copper setter for 2-inch flanged water meters in residential and commercial metering service lines.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and applicable IPC requirements. Shut off the water main and depressurize the service line before removing or installing this assembly. Verify that FIP thread engagement is correct and connections are leak-tested before returning service to operation. Do not use pipe compounds or materials incompatible with potable water systems.

Technical Specifications

• Inlet Size: 2 inches
• Outlet Size: 2 inches
• Inlet Connection Type: FIP (Female Iron Pipe)
• Outlet Connection Type: FIP (Female Iron Pipe)
• Meter Interface: Flanged
• Height: 21 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Key Valve Size: 2 inches
• Check Valve Size: 2 inches
• Lead Content: No Lead
• Weight: 33.13 pounds
• Box Quantity: 1

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vhh77-21-11-77-nl
