Ford Meter Box vhh76-21b-11-66-nl Coppersetter Meter Setter

Product Description

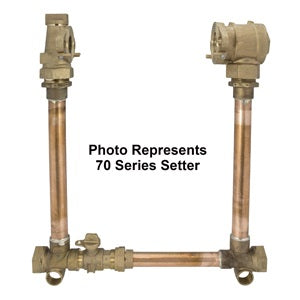

The FORD METER BOX vhh76-21b-11-66-nl is a 1-1/2-inch flanged meter setter designed for water meter installations requiring a no-lead-compliant configuration. Known as the Coppersetter 70 series, this unit stands 21 inches high and is configured with horizontal inlet and horizontal outlet. It combines a flanged key valve with a dual check valve and includes a built-in bypass. End connections are 1-1/2-inch FIP by 1-1/2-inch FIP. Licensed plumbers and water utility contractors install this type of setter in residential and light commercial water service applications where code requires no-lead materials.

This meter setter is used in potable water service line installations where a flanged meter must be set at grade or in a meter pit. The horizontal-in, horizontal-out configuration suits direct in-line runs without offset. The integrated dual check valve provides backflow resistance at the meter set, and the bypass valve allows system flow to continue during meter service or replacement. The 1-1/2-inch FIP connections accommodate standard threaded copper or iron service piping at this size.

Key Features

• No-lead compliant construction for potable water service applications
• 21-inch setter height accommodates standard meter pit depth requirements
• Horizontal inlet and horizontal outlet configuration for straight in-line installation
• Integrated dual check valve provides backflow resistance at the meter position
• Built-in bypass valve allows continued flow during meter removal or service
• 1-1/2-inch FIP by 1-1/2-inch FIP end connections for threaded service piping

Compatibility

Designed as an OEM-style flanged meter setter for 1-1/2-inch water meters in residential and light commercial potable water service installations requiring no-lead-compliant components.

Installation Notes

Installation is performed by licensed plumbers or water utility technicians in accordance with local plumbing codes and IPC requirements for water meter service. Shut off the main service water supply and relieve line pressure before removing or setting the meter. Verify that all threaded FIP connections are properly sealed with approved thread sealant rated for potable water service. Confirm local authority having jurisdiction requirements for dual check valve placement and bypass valve configuration before finalizing the installation.

Technical Specifications

• Inlet Connection: 1-1/2 inches FIP
• Outlet Connection: 1-1/2 inches FIP
• Setter Height: 21 inches
• Flow Orientation: Horizontal inlet, horizontal outlet
• Valve Configuration: Flanged key valve with dual check valve and bypass
• Lead Compliance: No lead
• Weight: 27.50 pounds
• Box Quantity: 1

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vhh76-21b-11-66-nl
