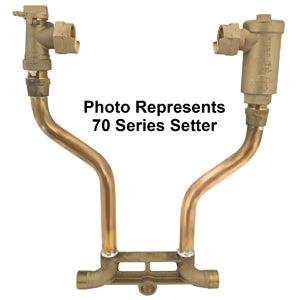

Ford Meter Box vhc74-21w-11-44-nl 1 in Coppersetter 70

Product Description

The FORD METER BOX vhc74-21w-11-44-nl is a 1-inch no-lead Coppersetter 70 meter setter designed for water meter installations in residential and light commercial service lines. The unit features a key valve combined with a dual cartridge check valve assembly, providing both shutoff and backflow prevention in a single inline package. Standing 21 inches high with horizontal inlet and horizontal outlet connections, this setter uses 1-inch double-purpose end fittings on both the inlet and outlet sides. Licensed plumbers and water utility contractors install this type of fitting as the primary interface between the service line and the water meter. It weighs approximately 13 pounds.

This coppersetter is intended for potable water meter pit or vault installations where a horizontal inlet and horizontal outlet configuration is required. The no-lead construction meets safe drinking water requirements for use in potable water systems. The dual cartridge check valve integrated into the body provides backflow protection without the need for a separate inline check device, simplifying the meter set assembly and reducing the number of joints in the pit.

Key Features

• No-lead construction for compliance with safe drinking water regulations in potable water service
• Integrated dual cartridge check valve eliminates need for a separate backflow device
• Key valve provides positive shutoff at the meter set
• 21-inch height accommodates standard meter pit and vault depth requirements
• Horizontal inlet and horizontal outlet orientation for direct in-line installation
• 1-inch double-purpose end connections on both inlet and outlet

Compatibility

Designed as an OEM-style meter setter for 1-inch residential and light commercial water meter installations requiring a horizontal inlet, horizontal outlet configuration with integrated dual cartridge check valve.

Installation Notes

Installation of this meter setter should be performed by a licensed plumber or water utility contractor in accordance with local plumbing codes and authority having jurisdiction requirements. Shut off the service line and depressurize before beginning work. Inspect the pit or vault for proper clearance to accommodate the 21-inch setter height before installation. Do not overtighten end connections; follow the fitting manufacturer torque guidance for the specific connection type used.

Technical Specifications

• Inlet Size: 1 inch
• Outlet Size: 1 inch
• Height: 21 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• End Connections: 1-inch Double Purpose (both ends)
• Check Valve Type: Dual Cartridge
• Shutoff Type: Key Valve
• Lead Content: No Lead
• Approximate Weight: 13 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vhc74-21w-11-44-nl
