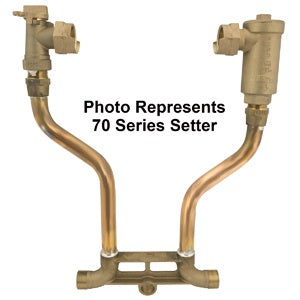

Ford Meter Box vhc72-21w-11-33-nl Coppersetter 5/8x3/4 Nl

Product Description

The FORD METER BOX vhc72-21w-11-33-nl is a no-lead coppersetter meter setter designed for water meter installation in residential and light commercial service lines. This unit measures 21 inches in height and is configured for horizontal inlet and horizontal outlet connections. It incorporates a 3/4 inch key valve and a dual cartridge check valve, providing both shutoff and backflow prevention in a single assembly. The setter bridges a 5/8 inch meter on the service side to 3/4 inch dual-purpose connections on the outlet side. Licensed plumbers and water utility contractors install this type of assembly to satisfy meter-setting requirements and local backflow prevention codes.

This coppersetter is suited for potable water service applications where a no-lead-compliant assembly is required by state or local plumbing code. The horizontal inlet and horizontal outlet configuration fits typical in-ground meter pit or vault installations. The 21 inch height accommodates standard meter box depths used in residential service laterals. The 3/4 inch dual-purpose connections on both the inlet and outlet sides allow flexibility in piping configuration during installation.

Key Features

• No-lead construction meets federal and state no-lead potable water requirements
• Integrated 3/4 inch key valve for service shutoff at the meter
• Dual cartridge check valve provides built-in backflow prevention
• 21 inch height fits standard residential meter pit installations
• Horizontal inlet and horizontal outlet configuration for in-ground meter vaults
• 5/8 inch meter connection with 3/4 inch dual-purpose outlet sizing

Compatibility

Designed as an OEM-style coppersetter for 5/8 inch water meters with 3/4 inch service line connections in residential and light commercial potable water systems requiring no-lead-compliant meter setting assemblies.

Installation Notes

Installation should be performed by a licensed plumber or certified water utility technician in accordance with local plumbing codes and applicable IPC requirements. Shut off the water main and relieve line pressure before removing any existing meter or fitting assembly. Verify meter pit depth against the 21 inch setter height prior to installation to confirm proper fit and avoid stress on connecting piping. Do not use pipe dope or thread sealants incompatible with potable water service on any joint in this assembly.

Technical Specifications

• Meter Connection Size: 5/8 inch x 3/4 inch
• Height: 21 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Key Valve Size: 3/4 inch
• Check Valve Type: Dual cartridge
• Outlet Connection: 3/4 inch dual purpose x 3/4 inch dual purpose
• Lead Compliance: No lead
• Weight: 7.75 pounds
• Box Quantity: 6

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vhc72-21w-11-33-nl
