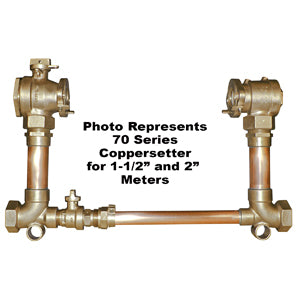

Ford Meter Box vbhh77-21b-1177tp6nl 2 in Flanged Copper Setter

Product Description

The FORD METER BOX vbhh77-21b-1177tp6nl is a 2-inch flanged no-lead copper setter designed for water meter installation in municipal and commercial plumbing systems. This unit integrates a 2-inch flanged ball valve with a dual check valve assembly, providing shutoff and backflow protection in a single manifold. The setter stands 21 inches high with horizontal inlet and horizontal outlet connections and includes a built-in bypass. Connections are 2-inch FIP by 2-inch FIP with a TP6 test port configuration. Licensed plumbers and water utility contractors install this type of assembly when setting residential or light commercial water meters at the service entrance.

This copper setter is suited for direct-bury or vault-style meter installations where a flanged, no-lead-compliant assembly is required by municipal specification. The horizontal-in, horizontal-out flow path accommodates standard meter box orientations. The integrated bypass allows meter swaps without full service interruption. The TP6 test port supports field testing of the dual check valve without disassembly. This configuration is commonly specified on potable water systems subject to local lead-free materials requirements under state and federal plumbing codes.

Key Features

• No-lead construction meets federal and state lead-free potable water requirements
• Integrated 2-inch flanged ball valve provides positive shutoff at the meter set
• Dual check valve assembly delivers built-in backflow protection
• Built-in bypass allows meter removal and replacement without shutting down the service line
• TP6 test port enables field verification of check valve function
• Horizontal inlet and horizontal outlet orientation for standard vault and meter box installations
• 2-inch FIP by 2-inch FIP connections for direct threaded makeup

Compatibility

Designed as an OEM-style flanged copper setter for 2-inch potable water meter installations requiring no-lead-compliant ball valve and dual check valve configuration with bypass.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local water utility requirements and applicable plumbing codes such as the IPC. Shut off the main water supply and depressurize the line before making any connections. Do not overtighten FIP threaded connections; use appropriate thread sealant rated for potable water service. Verify dual check valve function through the TP6 test port after installation and before returning the service to operation.

Technical Specifications

• Connection Size: 2 inches
• Connection Type: FIP by FIP, Flanged
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Setter Height: 21 inches
• Valve Type: Ball Valve with Dual Check Valve
• Bypass: Included
• Test Port: TP6
• Lead-Free Compliant: Yes
• Approximate Weight: 44.0 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhh77-21b-1177tp6nl
