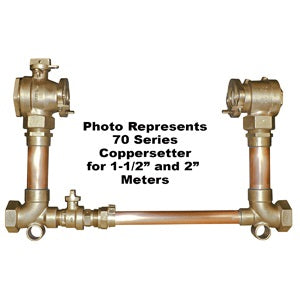

Ford Meter Box vbhh77-21b-11-77-nl 2 in Copper Setter Bypass

Product Description

The FORD METER BOX vbhh77-21b-11-77-nl is a 2-inch flanged copper setter designed for water meter installation in potable water service lines. It features a no-lead ball valve configuration with an integrated dual check valve and a built-in bypass, making it compliant with lead-free requirements for drinking water systems. Standing 21 inches high with horizontal inlet and horizontal outlet connections, this setter provides a ready-to-install assembly for metered water service. Connections are 2-inch FIP on both the inlet and outlet. At 36.27 pounds, this is a substantial assembly suited for commercial or larger residential service installations. Licensed plumbers and waterworks contractors are the primary installers of this type of equipment.

This copper setter is used in potable water distribution systems where a flanged meter connection is required. The bypass feature allows water service to continue while the meter is removed or serviced, minimizing downtime. The dual check valve provides backflow protection as part of the assembly. This unit is well suited for municipal water service connections, utility metering installations, and commercial building water entry points where a 2-inch service line is specified.

Key Features

• No-lead construction for compliance with lead-free potable water requirements
• Integrated dual check valve provides backflow protection within the assembly
• Built-in bypass allows meter service without interrupting downstream water supply
• 21-inch setter height with horizontal inlet and horizontal outlet orientation
• 2-inch FIP inlet and 2-inch FIP outlet connections for standard threaded service piping
• Flanged meter connection for secure meter mounting and removal

Compatibility

Designed as an OEM-style replacement or new-installation copper setter for 2-inch flanged water meter assemblies in potable water service applications.

Installation Notes

Installation of water meter setters is typically performed by a licensed plumber or certified waterworks contractor in accordance with local plumbing codes and utility specifications. Shut off the main water supply and depressurize the line before beginning installation. Use appropriate thread sealant rated for potable water service on all FIP connections. Verify local authority having jurisdiction requirements for backflow protection and meter setting before final installation.

Technical Specifications

• Connection Size: 2 inches
• Connection Type: 2-inch FIP inlet x 2-inch FIP outlet, flanged meter connection
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Setter Height: 21 inches
• Valve Type: Ball valve with dual check valve and bypass
• Lead Free: Yes
• Weight: 36.27 pounds
• Box Quantity: 1

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhh77-21b-11-77-nl
