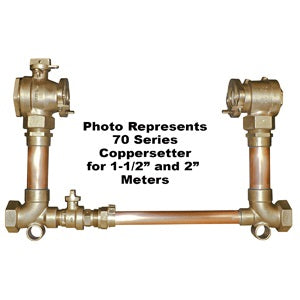

Ford Meter Box vbhh77-21-11-77-nl 2 in Flanged Coppersetter

Product Description

The FORD METER BOX vbhh77-21-11-77-nl is a 2-inch flanged coppersetter designed for water meter installations requiring a no-lead compliant assembly. This unit features a dual check valve and a flanged ball valve configuration, providing positive shutoff and backflow protection in a single integrated assembly. Standing 21 inches high with horizontal inlet and horizontal outlet connections, it accepts 2-inch FIP by 2-inch FIP fittings. Licensed plumbers and water utility contractors install this type of assembly on potable water service lines where meter setting and backflow prevention are required in one serviceable unit.

This coppersetter is suited for residential and light commercial water meter settings where horizontal inlet and horizontal outlet orientation is required. The no-lead construction meets federal and state potable water compliance requirements. The flanged ball valve provides a positive, quarter-turn shutoff at the meter connection point. The dual check valve is integrated into the assembly, reducing the number of separate components needed at the meter pit or vault.

Key Features

• No-lead construction compliant with potable water safe-drinking regulations
• Integrated dual check valve for backflow protection within the meter assembly
• Flanged ball valve for reliable quarter-turn shutoff
• Horizontal inlet and horizontal outlet orientation for direct meter setting
• 2-inch FIP by 2-inch FIP connection configuration
• 21-inch height accommodates standard meter pit depth requirements

Compatibility

Designed as an OEM-style replacement or new-installation coppersetter for 2-inch water meter settings requiring flanged connections, dual check valve backflow protection, and no-lead compliant materials in potable water service applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the main service line and depressurize the system before removing or installing the coppersetter assembly. Verify thread engagement and joint integrity at all FIP connections before restoring service pressure. Do not use on non-potable water systems, as this assembly is rated for potable water service.

Technical Specifications

• Connection Size: 2 inches
• Connection Type: FIP by FIP (Flanged)
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Height: 21 inches
• Valve Type: Flanged Ball Valve with Dual Check Valve
• Lead Compliance: No Lead
• Weight: 35.13 pounds
• Box Quantity: 1

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhh77-21-11-77-nl
