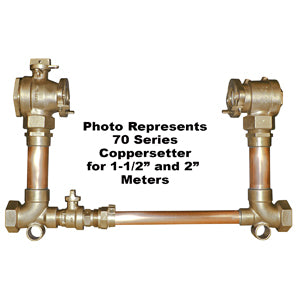

Ford Meter Box vbhh77-18-11-77-nl 2 in Flanged Meter Coppersetter

Product Description

The FORD METER BOX vbhh77-18-11-77-nl is a 2-inch flanged meter coppersetter designed for water meter installation in municipal and commercial water distribution systems. This no-lead assembly integrates a flanged ball valve with a dual check valve, providing shutoff and backflow prevention in a single unit. The horizontal inlet and horizontal outlet configuration supports in-line meter settings with 18 inches of height clearance. At approximately 34 pounds, this is a heavy-duty fitting suited for licensed plumbers and utility contractors working on metered water service connections.

This coppersetter is used in residential and commercial meter pit or vault installations where a flanged, no-lead compliant assembly is required. The 2-inch FIP by 2-inch FIP end connections accommodate standard female iron pipe threading on both inlet and outlet sides. The horizontal inlet and outlet orientation suits direct in-line meter setting applications without requiring additional fittings to redirect flow. Utility contractors and journeyman plumbers typically specify this style of coppersetter when installing or replacing water meters in compliance with local water authority requirements.

Key Features

• No-lead construction meets safe drinking water compliance requirements
• Integrated dual check valve provides built-in backflow prevention
• Flanged ball valve allows full-port shutoff for meter service and replacement
• Horizontal inlet and horizontal outlet for straightforward in-line meter setting
• 2-inch FIP by 2-inch FIP threaded connections for standard pipe compatibility
• 18-inch height suits standard meter pit depth requirements

Compatibility

Designed as an OEM-style replacement or new-installation coppersetter for 2-inch flanged water meter assemblies in residential and commercial potable water service applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified utility contractor in accordance with local plumbing codes and water authority specifications. Shut off the water main and depressurize the line before beginning installation or meter replacement. Inspect all threaded FIP connections for proper seating and use appropriate thread sealant rated for potable water service. Ensure the assembly is supported to avoid stress on the meter flanges during and after installation.

Technical Specifications

• Connection Size: 2 inches
• Inlet Connection: 2-inch FIP
• Outlet Connection: 2-inch FIP
• Valve Type: Flanged Ball Valve with Dual Check Valve
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Height: 18 inches
• Lead Content: No Lead
• Approximate Weight: 34 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhh77-18-11-77-nl
