Ford Meter Box vbhh76-21b-11-66-nl Coppersetter 1-1/2 in

Product Description

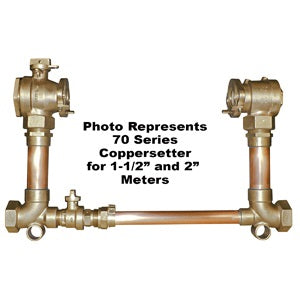

The FORD METER BOX vbhh76-21b-11-66-nl is a 1-1/2-inch no-lead Coppersetter meter setter designed for flanged water meter installations. This assembly integrates a flanged ball valve with a dual check valve in a single unit, standing 21 inches high with horizontal inlet and horizontal outlet connections. It includes an integral bypass and terminates in 1-1/2-inch FIP by 1-1/2-inch FIP end connections. Weighing 29.20 pounds, this setter is built for municipal and commercial water service applications where no-lead compliance is required. Licensed plumbers and water utility contractors are the primary installers of this type of equipment.

This meter setter is suited for residential and light commercial water meter installations requiring a flanged connection interface. The horizontal-in, horizontal-out flow path accommodates typical pit or vault installations. The integrated bypass allows meter removal and service without interrupting water supply to the structure. The dual check valve provides backflow protection as part of the assembly, reducing the need for a separate backflow preventer in applicable jurisdictions.

Key Features

• No-lead construction meets safe drinking water compliance requirements
• Integrated dual check valve provides built-in backflow protection
• Integral bypass allows meter removal without shutting off service
• 21-inch height with horizontal inlet and horizontal outlet for standard vault or pit configurations
• Flanged ball valve design for positive shutoff
• 1-1/2-inch FIP by 1-1/2-inch FIP end connections for direct threaded installation

Compatibility

Designed as a no-lead OEM-style meter setter for 1-1/2-inch flanged water meter installations in residential and commercial water service applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and applicable water utility requirements. Shut off the upstream water supply and depressurize the line before making any connections. Ensure proper alignment of the horizontal inlet and outlet to match existing service line orientation before threading FIP connections. Confirm jurisdictional acceptance of the integral dual check valve as a compliant backflow prevention method prior to installation.

Technical Specifications

• Inlet Connection: 1-1/2 inches FIP
• Outlet Connection: 1-1/2 inches FIP
• Height: 21 inches
• Flow Orientation: Horizontal in, horizontal out
• Valve Type: Flanged ball valve with dual check valve
• Bypass: Included
• Lead Compliance: No lead
• Weight: 29.20 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhh76-21b-11-66-nl
