Ford Meter Box vbhh76-18b-11-66-nl Coppersetter 1-1/2 in

Product Description

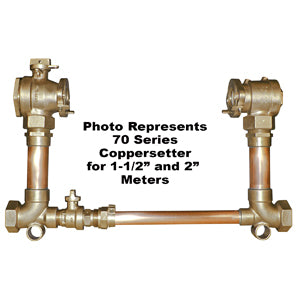

The FORD METER BOX vbhh76-18b-11-66-nl is a 1-1/2-inch flanged CopperSetter 70 meter setter designed for water metering applications in municipal and commercial water service installations. This no-lead-compliant unit features an integrated flanged ball valve paired with a dual check valve assembly, providing both shutoff and backflow prevention in a single assembly. The unit is configured with horizontal inlet and horizontal outlet connections and includes a built-in bypass. It measures 18 inches in height and connects via 1-1/2-inch FIP on both the inlet and outlet sides. Weighing approximately 29 pounds, this assembly is built for permanent in-line meter set installations serviced by licensed plumbers and water utility contractors.

This meter setter is suited for residential and light commercial water service lines where a 1-1/2-inch flanged meter set configuration is required. The horizontal in, horizontal out orientation makes it appropriate for typical pit or vault installations where the meter must align with horizontal service piping. The integrated dual check valve satisfies common backflow prevention requirements at the meter location without requiring a separate device. The bypass provision allows temporary service continuity during meter maintenance or replacement.

Key Features

• No-lead-compliant construction meets applicable safe drinking water requirements
• Integrated flanged ball valve provides full-flow shutoff capability
• Dual check valve assembly provides backflow prevention at the meter point
• Horizontal inlet and horizontal outlet configuration for pit or vault installations
• Built-in bypass allows service continuity during meter service
• 1-1/2-inch FIP inlet and 1-1/2-inch FIP outlet connections

Compatibility

Designed as an OEM-style flanged meter setter for 1-1/2-inch water service lines requiring a no-lead-compliant CopperSetter 70 configuration with dual check valve and bypass.

Installation Notes

Installation should be performed by a licensed plumber or certified water service technician in accordance with local plumbing codes and utility requirements. Shut off and depressurize the service line completely before removing or installing the meter setter assembly. Verify flange bolt patterns and FIP thread engagement before pressurizing the assembly. At 29 pounds, use appropriate lifting and support techniques during installation in a meter pit or vault.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Connection Type: Flanged, 1-1/2 inches FIP inlet by 1-1/2 inches FIP outlet
• Valve Type: Ball valve with dual check valve
• Flow Configuration: Horizontal inlet, horizontal outlet
• Height: 18 inches
• Bypass: Included
• Lead Compliance: No lead
• Approximate Weight: 29 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhh76-18b-11-66-nl
