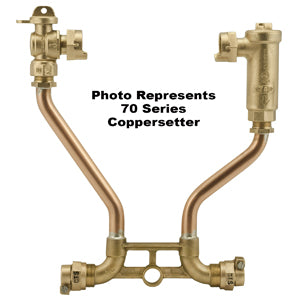

Ford Meter Box vbhc74-24w-mm-44-nl 1 in Coppersetter No Lead

Product Description

The FORD METER BOX vbhc74-24w-mm-44-nl is a 1-inch no-lead coppersetter designed for residential and light commercial water meter installations. This meter set assembly integrates a 3/4-inch by 1-inch ball valve and a dual cartridge check valve into a single unit, simplifying the meter setting process. The unit stands 24 inches high with horizontal inlet and horizontal outlet orientation. End connections are 1-inch integral male iron pipe (MIP) on both the inlet and outlet. Licensed plumbers and water utility contractors install this assembly during meter pit or vault setups. Approximate shipping weight is 12 pounds.

This coppersetter is suited for potable water service line applications where a combined shutoff and backflow prevention assembly is required at the meter location. The horizontal inlet and horizontal outlet configuration accommodates typical below-grade meter pit installations. The no-lead construction meets safe drinking water compliance requirements for potable water contact. Utility contractors and licensed plumbers working on new water service installations or meter replacement projects will find this assembly appropriate for standard 1-inch service line work.

Key Features

• No-lead construction compliant with safe drinking water standards for potable water systems
• Integrated 3/4-inch by 1-inch ball valve provides positive shutoff at the meter
• Dual cartridge check valve provides backflow protection in a single assembly
• 24-inch height with horizontal inlet and horizontal outlet for standard meter pit installation
• 1-inch integral MIP connections on both inlet and outlet ends
• Single-unit design reduces the number of field connections required during meter setting

Compatibility

Designed as an OEM-style replacement or new-installation coppersetter for standard 1-inch residential and light commercial water meter settings requiring horizontal inlet and horizontal outlet orientation.

Installation Notes

Installation should be performed by a licensed plumber or qualified water utility contractor in accordance with local plumbing codes and applicable sections of the IPC. Shut off the upstream water service and relieve system pressure before beginning any meter set work. Inspect the meter pit for proper dimensions and support before lowering the assembly into place. Do not apply excessive force to the integral MIP connections during threading to avoid damage to the valve body.

Technical Specifications

• Inlet Size: 1 inch
• Outlet Size: 1 inch
• Ball Valve Size: 3/4 inch by 1 inch
• Height: 24 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Connection Type: 1-inch Integral MIP x 1-inch Integral MIP
• Check Valve Type: Dual Cartridge Check Valve
• Lead Content: No Lead
• Approximate Weight: 12 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhc74-24w-mm-44-nl
