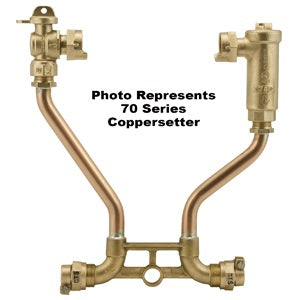

Ford Meter Box vbhc74-24w-11-44-nl 1 in No-lead Copper Meter Setter

Product Description

The FORD METER BOX vbhc74-24w-11-44-nl is a 1-inch no-lead copper meter setter designed for water meter installations in residential and light commercial service lines. This unit incorporates a 3/4-inch by 1-inch ball valve, a dual cartridge check valve, and stands 24 inches high with a horizontal inlet and horizontal outlet configuration. The double-purpose inlet and outlet connections on both ends support flexible installation orientations. Licensed plumbers and utility contractors install this setter as part of a metered water service assembly.

This meter setter is suited for potable water service installations where lead-free compliance is required under applicable plumbing codes. The horizontal inlet and horizontal outlet orientation is common in pit-set meter installations where the service line enters and exits at grade or in a meter box. The dual cartridge check valve protects the distribution system from backflow without requiring a separate inline device. The 24-inch height accommodates standard meter pit depths found in residential service applications.

Key Features

• No-lead construction meets lead-free requirements for potable water systems
• Integrated 3/4-inch by 1-inch ball valve for service shutoff at the meter
• Dual cartridge check valve provides backflow protection in a single assembly
• 24-inch height fits standard residential meter pit installations
• Horizontal inlet and horizontal outlet configuration for in-line pit-set service runs
• Double-purpose 1-inch connections on both inlet and outlet ends

Compatibility

Designed as an OEM-style replacement or new-installation component for 1-inch copper water service meter setter assemblies requiring no-lead, horizontal-flow configuration with integrated check valve and ball valve.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code and applicable local water utility requirements. Shut off the main water service and depressurize the line before removing or installing the setter. Ensure all compression or solder connections are properly made and tested for leaks before covering the meter pit. Do not exceed the rated working pressure for this assembly as specified by the authority having jurisdiction.

Technical Specifications

• Pipe Size: 1 inch
• Ball Valve Size: 3/4 inch by 1 inch
• Check Valve Type: Dual Cartridge
• Height: 24 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Lead Content: No-Lead
• Weight: 14.45 pounds
• Box Quantity: 3

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhc74-24w-11-44-nl
