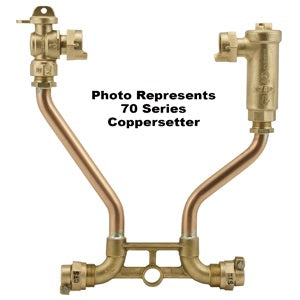

Ford Meter Box vbhc74-18w-44-44-qnl 1 in Copper Meter Setter

Product Description

The FORD METER BOX vbhc74-18w-44-44-qnl is a no-lead copper water meter setter designed for residential and light commercial water metering applications. This unit measures 1 inch and features a horizontal inlet and horizontal outlet configuration with an 18-inch height. It incorporates a dual check valve and a 3/4-inch by 1-inch ball valve for shut-off control. Both the inlet and outlet connections are 1-inch CTS quick-joint fittings, allowing for straightforward field connection. The no-lead construction meets safe drinking water compliance requirements. Plumbers and water utility contractors install this type of setter when setting water meters in-line between the service lateral and the meter register.

This meter setter is suited for potable water service installations where a 1-inch CTS connection is required at the meter. The horizontal inlet and horizontal outlet orientation is commonly used in below-grade meter pit installations or vault-style meter boxes where straight-run plumbing geometry is the standard configuration. The integrated dual check valve provides backflow prevention at the meter point of service, and the ball valve allows for full shut-off without removing the meter. This unit is intended for installation by licensed plumbers or water utility technicians working to local code requirements.

Key Features

• No-lead construction meets federal and state safe drinking water material standards
• 18-inch height accommodates standard residential meter pit depth requirements
• Horizontal inlet and horizontal outlet for straight-run meter pit installations
• Integrated dual check valve provides in-line backflow prevention at the meter
• 3/4-inch by 1-inch ball valve included for full flow shut-off control
• 1-inch CTS quick-joint connections on both inlet and outlet for fast field assembly

Compatibility

Designed as an OEM-style replacement or new-installation setter for 1-inch residential and light commercial potable water metering systems using CTS piping at the service connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and applicable sections of the International Plumbing Code. Shut off the water service at the curb stop or main before beginning any work on the service line or meter setter. Verify that CTS pipe ends are clean, deburred, and fully seated before engaging the quick-joint couplings. Do not apply pipe dope or thread sealant to quick-joint fittings unless explicitly required by the fitting manufacturer.

Technical Specifications

• Inlet Size: 1 inch
• Outlet Size: 1 inch
• Height: 18 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Connection Type: 1-inch CTS Quick Joint (both ends)
• Ball Valve Size: 3/4 inch x 1 inch
• Backflow Device: Dual Check Valve
• Lead-Free Compliant: Yes
• Weight: 12.01 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhc74-18w-44-44-qnl
