Ford Meter Box vbhc73-18w-11-33-nl 3/4 in Coppersetter

Product Description

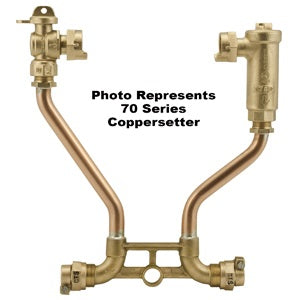

The FORD METER BOX vbhc73-18w-11-33-nl is a 3/4 inch no-lead CopperSetter meter setter assembly used in potable water metering applications. It combines a 5/8 inch by 3/4 inch no-lead ball valve with a dual cartridge check valve in a single unit standing 18 inches high. Inlet and outlet connections are horizontal, and both connection ends are 3/4 inch dual-purpose fittings. Licensed plumbers and water utility contractors install this type of assembly to connect residential or light commercial water meters to the service line while meeting lead-free material requirements under applicable drinking water standards.

This meter setter is suited for residential and light commercial water service installations where a compact, all-in-one setter with integrated backflow protection is required. The horizontal inlet and horizontal outlet orientation is common in pit-set or vault installations. The dual cartridge check valve provides backflow prevention inline, reducing the need for a separate check valve assembly. The no-lead construction meets federal and state lead-free requirements for components in contact with potable water.

Key Features

• No-lead construction compliant with lead-free potable water requirements
• Integrated 5/8 inch by 3/4 inch no-lead ball valve for service shutoff
• Dual cartridge check valve provides inline backflow protection
• 18 inch height suits standard pit or vault meter installations
• Horizontal inlet and horizontal outlet configuration
• 3/4 inch dual-purpose connections on both inlet and outlet ends

Compatibility

Designed as an OEM-style replacement or new-installation component for 3/4 inch residential and light commercial potable water meter setting assemblies requiring no-lead, ball valve, and dual check valve functionality.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the water service at the curb stop before beginning any work on the meter setter. Verify that all downstream piping and fittings are also no-lead compliant before connecting this assembly to a potable water system. Do not over-tighten connections; follow the fitting manufacturer torque guidance and use appropriate thread sealant approved for potable water service.

Technical Specifications

• Inlet Size: 3/4 inches
• Outlet Size: 3/4 inches
• Ball Valve Size: 5/8 inches x 3/4 inches
• Height: 18 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Check Valve Type: Dual cartridge
• Lead-Free: Yes
• Weight: 8.25 pounds
• Box Quantity: 6

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhc73-18w-11-33-nl
