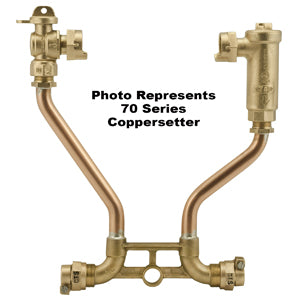

Ford Meter Box vbhc72-24w-11-33-nl Coppersetter No Lead

Product Description

The FORD METER BOX vbhc72-24w-11-33-nl is a no-lead meter coppersetter designed for residential and light commercial water meter installations. This unit combines a 5/8 x 3/4 inch ball valve with a dual cartridge check valve in a single assembly, standing 24 inches high with horizontal inlet and horizontal outlet connections. The 3/4 inch double-purpose inlet and 3/4 inch double-purpose outlet allow for flexible installation configurations. Weighing approximately 8 pounds, this coppersetter is built for direct burial service and is intended for installation by licensed plumbers working on potable water metering applications.

This coppersetter is used in water meter pit or vault installations where a combined shutoff and backflow prevention assembly is required at the meter service entrance. The horizontal inlet and outlet orientation suits standard meter box configurations in residential subdivisions and light commercial properties. The no-lead construction meets regulatory requirements for potable water service components.

Key Features

• No-lead construction compliant with potable water regulations
• Integrated ball valve and dual cartridge check valve in a single unit
• 24 inch height accommodates standard meter pit depth requirements
• Horizontal inlet and horizontal outlet for direct in-line meter installation
• 3/4 inch double-purpose connections on both inlet and outlet
• 5/8 x 3/4 inch meter interface sizing for common residential water meters

Compatibility

Designed as an OEM-style coppersetter replacement for residential and light commercial water meter service assemblies requiring a 5/8 x 3/4 inch ball valve with dual check valve configuration and horizontal in-line connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements for potable water service. Shut off the main water supply and depressurize the line before removing the existing meter assembly or installing this coppersetter. Verify pit depth and inlet-outlet alignment before setting the unit to avoid stress on the connections. No-lead fittings require no additional treatment but should be inspected for debris before pressurizing the system.

Technical Specifications

• Meter Size: 5/8 x 3/4 inches
• Height: 24 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Inlet Connection: 3/4 inches double purpose
• Outlet Connection: 3/4 inches double purpose
• Valve Type: Ball valve with dual cartridge check valve
• Lead Content: No lead
• Approximate Weight: 8 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhc72-24w-11-33-nl
