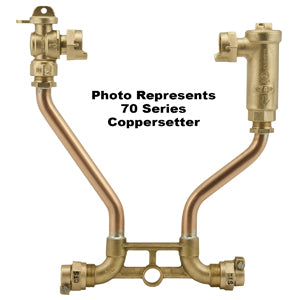

Ford Meter Box vbhc72-21w-11-33-nl Meter Coppersetter Ball Valve

Product Description

The FORD METER BOX vbhc72-21w-11-33-nl is a no-lead meter coppersetter designed for water meter installations. It combines a 5/8 x 3/4 inch ball valve with a dual cartridge check valve in a single assembly. Standing 21 inches high with horizontal inlet and horizontal outlet configurations, this coppersetter provides a compact, code-compliant solution for residential and light commercial meter settings. The no-lead construction meets federal Safe Drinking Water Act requirements for potable water systems. Both the inlet and outlet connections are 3/4 inch dual purpose, offering flexible connection options. Licensed plumbers and water utility contractors install this unit as part of a complete meter setting assembly.

This coppersetter is suited for standard 5/8 x 3/4 inch water meter installations in residential and light commercial applications. The horizontal inlet and horizontal outlet orientation accommodates typical in-line meter pit or vault configurations. The integrated dual cartridge check valve protects the distribution system from backflow at the meter setting point. Water utility contractors and licensed plumbers working on service line installations will find this unit appropriate for new construction and meter replacement projects.

Key Features

• No-lead construction compliant with federal Safe Drinking Water Act requirements for potable water use
• Integrated ball valve and dual cartridge check valve in one assembly
• 21 inch overall height suits standard meter pit depth requirements
• Horizontal inlet and horizontal outlet for straightforward in-line installation
• 3/4 inch dual purpose connections on both inlet and outlet for flexible service line hookup
• Designed for 5/8 x 3/4 inch water meter applications

Compatibility

Designed as an OEM-style coppersetter for residential and light commercial water meter settings accepting a 5/8 x 3/4 inch meter with horizontal inlet and outlet configurations.

Installation Notes

Installation should be performed by a licensed plumber or authorized water utility contractor in accordance with local plumbing codes and applicable standards. Shut off the water service line and relieve system pressure before removing any existing meter setting components. Verify that the pit or vault depth accommodates the 21 inch unit height before installation. Inspect all connections for leaks after restoring service pressure.

Technical Specifications

• Inlet x Outlet Size: 5/8 x 3/4 inches
• Overall Height: 21 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Inlet Connection: 3/4 inch Dual Purpose
• Outlet Connection: 3/4 inch Dual Purpose
• Valve Type: Ball Valve with Dual Cartridge Check Valve
• Lead Content: No Lead
• Approximate Weight: 8.0 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhc72-21w-11-33-nl
