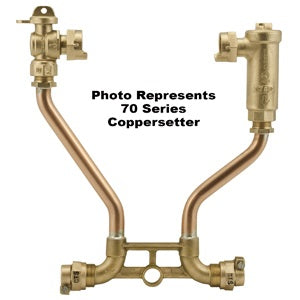

Ford Meter Box vbhc72-18w-44-33-qnl Coppersetter 5/8x3/4

Product Description

The FORD METER BOX vbhc72-18w-44-33-qnl is a no-lead coppersetter meter setter designed for residential and light commercial water metering installations. This unit features an integrated ball valve and a dual cartridge check valve, providing shutoff and backflow protection in a single assembly. The setter stands 18 inches high with a horizontal inlet and horizontal outlet configuration. Connections are 3/4-inch CTS quick-joint on both the inlet and outlet sides. It is sized for 5/8 x 3/4-inch meter applications and is built to no-lead compliance standards required for potable water service.

This coppersetter is used in potable water distribution systems where a meter setter with built-in shutoff and backflow protection is required. The horizontal inlet and horizontal outlet orientation suits standard pit or vault installations. The 3/4-inch CTS quick-joint connections allow for efficient field assembly without soldering. Typical installations include residential water service laterals and light commercial meter pits where dual check valve protection is specified by the local authority having jurisdiction.

Key Features

• No-lead construction meets potable water compliance requirements
• Integrated ball valve provides full-flow shutoff at the meter
• Dual cartridge check valve delivers built-in backflow protection
• 18-inch height with horizontal inlet and horizontal outlet configuration
• 3/4-inch CTS quick-joint connections on both ends for solderless assembly
• Sized for 5/8 x 3/4-inch water meters

Compatibility

Designed as an OEM-style replacement or new-installation coppersetter for 5/8 x 3/4-inch water meters in residential and light commercial potable water service applications requiring dual check valve backflow protection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water main and relieve line pressure before removing an existing setter or making new connections. Quick-joint CTS fittings must be fully seated and verified per the fitting manufacturer instructions before pressurizing the line. Inspect the dual check valve cartridges after installation to confirm proper seating and backflow function prior to returning the service to operation.

Technical Specifications

• Meter Size: 5/8 x 3/4 inch
• Height: 18 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Connection Type: 3/4-inch CTS Quick-Joint (both ends)
• Valve Type: Ball Valve with Dual Cartridge Check Valve
• Lead Content: No Lead
• Weight: 6.57 pounds
• Box Quantity: 7

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhc72-18w-44-33-qnl
