Ford Meter Box vbhc44-15w-nl 1 in Meter Resetter No Lead

Product Description

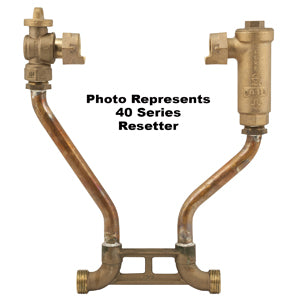

The FORD METER BOX vbhc44-15w-nl is a 1-inch meter resetter assembly designed for water meter service connections in municipal and commercial water distribution systems. This no-lead compliant unit combines a 3/4-inch by 1-inch ball valve with a dual cartridge check valve in a single assembly, standing 15 inches high. Licensed plumbers and water utility contractors install this type of resetter when reconnecting water meters after service interruptions, meter replacements, or system shutdowns. The no-lead construction meets federal and state safe drinking water requirements for potable water contact.

This meter resetter is suited for residential and light commercial potable water service lines where a meter set assembly is required. It is typically installed at the meter pit or vault location, providing both isolation and backflow prevention in a compact, integrated form. The 15-inch height accommodates standard meter box depths common in utility service installations. Water utility contractors and licensed plumbers working on metered service connections will find this assembly appropriate for new installations and meter replacement projects.

Key Features

• No-lead construction compliant with safe drinking water regulations for potable water applications
• Integrated dual cartridge check valve provides built-in backflow prevention
• 3/4-inch by 1-inch ball valve delivers full-flow shutoff capability
• 15-inch height fits standard meter pit and vault configurations
• Single assembly simplifies meter set installation and reduces connection points

Compatibility

Designed as an OEM-style replacement or new-installation meter resetter for 1-inch potable water meter service connections in residential and commercial utility applications.

Installation Notes

Installation should be performed by a licensed plumber or certified water utility technician in accordance with local plumbing codes and utility service requirements. Shut off the water main and depressurize the service line before beginning any work. Ensure all fittings and thread connections are properly sealed and torqued to local code specifications. Verify that the no-lead designation meets the requirements of the authority having jurisdiction before installation in potable water service.

Technical Specifications

• Inlet Size: 3/4 inches
• Outlet Size: 1 inch
• Assembly Height: 15 inches
• Lead Content: No Lead
• Valve Type: Ball Valve with Dual Cartridge Check Valve
• Approximate Weight: 10.0 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhc44-15w-nl
