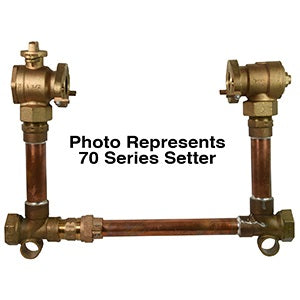

Ford Meter Box vbh77-18-11-77-nl 2 in Coppersetter No Lead

Product Description

The FORD METER BOX vbh77-18-11-77-nl is a 2-inch flanged coppersetter assembly designed for water meter installation in municipal and commercial water distribution systems. This unit combines a ball valve with an integrated check valve in a single no-lead brass assembly. The configuration features horizontal inlet and horizontal outlet connections with a 2-inch FIP by 2-inch FIP end connection arrangement and stands 18 inches high. The no-lead construction meets safe drinking water requirements for potable water service. Licensed plumbers and water utility crews install this coppersetter at the meter set location between the service line and the water meter.

This coppersetter is suited for residential and commercial meter setting applications where a flanged, full-port ball valve with backflow check protection is required. The horizontal inlet and horizontal outlet orientation accommodates standard in-line meter pit or vault configurations. The 2-inch FIP connections allow direct threaded makeup to service piping. At 18 inches in height, this assembly fits typical pre-cast meter box depths used in municipal water service installations.

Key Features

• No-lead construction compliant with safe drinking water standards for potable applications
• Integrated check valve provides backflow protection at the meter set
• Ball valve shutoff for positive isolation of the water meter
• Horizontal inlet and horizontal outlet orientation for in-line meter pit installation
• 2-inch FIP by 2-inch FIP connections for standard threaded service piping makeup
• 18-inch height suits common meter box and vault depth requirements

Compatibility

Designed as an OEM-style flanged coppersetter for 2-inch residential and commercial water meter setting applications requiring no-lead ball valve and check valve service.

Installation Notes

Installation should be performed by a licensed plumber or certified water utility technician in accordance with local plumbing codes and utility specifications. Shut off the water main and depressurize the service line before beginning work. Inspect all FIP threads and use appropriate thread sealant rated for potable water service before making up connections. Verify check valve orientation matches flow direction prior to final makeup.

Technical Specifications

• Connection Size: 2 inches
• Inlet Connection: 2-inch FIP
• Outlet Connection: 2-inch FIP
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Assembly Height: 18 inches
• Lead Compliance: No Lead
• Box Quantity: 1
• Weight: 32.14 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbh77-18-11-77-nl
