Ford Meter Box vbh76-21b-11-66-nl Flanged Meter Setter

Product Description

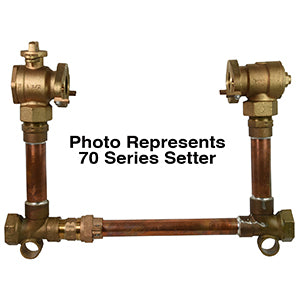

The FORD METER BOX vbh76-21b-11-66-nl is a 1.5-inch flanged CopperSetter 70 meter setter designed for water meter installations in municipal and utility service lines. This no-lead assembly combines a flanged ball valve with an integrated check valve and bypass in a single unit. The inlet and outlet are both 1.5-inch FIP connections, and the setter stands 21 inches high with horizontal inlet and horizontal outlet orientation. At 26 pounds, this is a substantial cast unit built for in-ground service applications. Licensed plumbers and utility contractors install this type of assembly during water meter changeouts and new service connections.

The vbh76-21b-11-66-nl is suited for residential and light commercial water meter settings where a flanged connection style is specified. The horizontal-in, horizontal-out configuration fits standard meter pit layouts. The integrated bypass allows meter service or replacement without a full service shutoff, reducing disruption during maintenance. The no-lead construction meets regulatory requirements for potable water system components where lead-free materials are mandated.

Key Features

• No-lead construction for compliance with potable water lead-free requirements
• Flanged ball valve combined with check valve in one assembly
• Integrated bypass for meter service without full line shutdown
• 21-inch height with horizontal inlet and horizontal outlet orientation
• 1.5-inch FIP inlet and 1.5-inch FIP outlet connections
• Heavy-duty build at 26 pounds for durable in-ground service

Compatibility

Designed as an OEM-style flanged meter setter for 1.5-inch water meter installations in municipal, utility, and commercial potable water service applications where no-lead flanged setters are required.

Installation Notes

Installation is performed by licensed plumbers or utility contractors in accordance with local plumbing codes and applicable AWWA standards. Shut off the main service line and depressurize before installation. Confirm proper pit depth and alignment before setting the unit to ensure the horizontal inlet and outlet match existing service line routing. Do not overtighten FIP connections; use appropriate thread sealant rated for potable water service.

Technical Specifications

• Connection Size: 1.5 inches
• Inlet Connection: 1.5-inch FIP
• Outlet Connection: 1.5-inch FIP
• Connection Style: Flanged
• Height: 21 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Bypass: Included
• Lead-Free: Yes (No Lead)
• Approximate Weight: 26 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbh76-21b-11-66-nl
